50W 150W 300W aluminum waterproof led slim floodlight stadium area
lighting

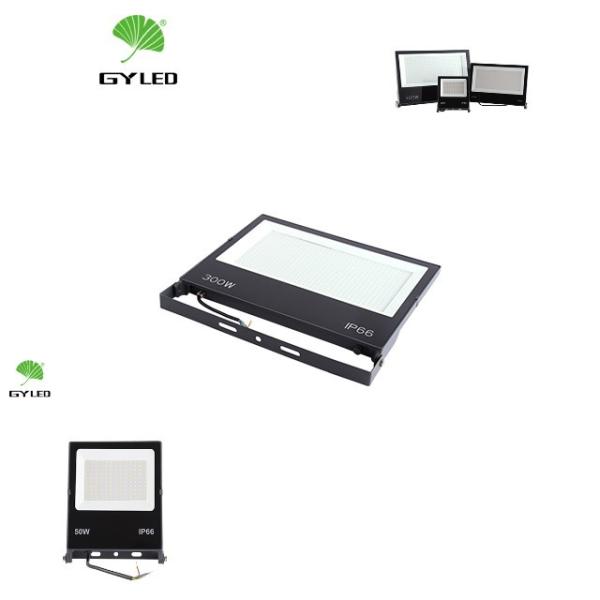

GY1512TG Waterproof LED Floodlights
Strengthens:
1. Waterproof IP66.
2. Unified appearance, more concise. Double protection.
3. Thickened face mask of tempered glass. Anti-scratch,
wear-resistant, anti-collision.
| Product technical parameter |
Input Voltage(V) | AC100-300V |
| Model | GY1512TG | GY1714TG | GY1916TG | GY2824TG | GY3529TG | GY3529TG | GY6540TG |
Power(W) | 20 | 30 | 50 | 100 | 150 | 200 | 300 |
Lighting Efficiency(lm/W) | 120lm/w |
Color Temperature(K) | 3000-6500K |
| Power Factor | ＞0.95 |
| CRI | 80 |
| Frequency | 50/60Hz |
| IP Grade | IP66 |
| IK Grade | CLASS I |
| Surge Protection | 4KV |
| Working Temperature(℃) | -20～45 |
| Working Environment Humility(RH) | 20 ～95 % |
Dimension(mm) | 170*140*30 | 190*160*30 | 210*180*30 | 280*240*30 | 350*295*36 | 420*300*36 | 468*358*40 |
Net Weight(Kg) | 0.53 | 0.84 | 1.05 | 1.86 | 2.8 | 4 | 5.5 |
| Material | Die casting aluminum+Glass |
Lighting solutions service:
Lighting and circuitry design, DIALux Evo layout, LitePro DLX
layout.
Anti-glaring light is required more and more for applications where
people don't feel comfortable with the glaring light, especially in
the stadium.
Description
The high mast lamps adopt a unique sealed shell, which makes the
whole lamp comply with the IP66 standard for outdoor use.
The aluminum alloy shell has excellent heat solution performance
and effectively guarantees the service life of the LED light source
up to 50,000 hours.
Input voltage: 100~300V, 50Hz.
Slim Housing Design with Good Heating Solution.
Power Range from 20watt to 300watt.
Application:
Large outdoor fields - Stadiums, riding arenas, baseball and
football fields, pool
Large indoor sports facilities, courts, concert halls, and other
indoor arenas
Other large outdoor areas: Park, docks, airports, shipyard
Other large-scale landscape, square lighting.
