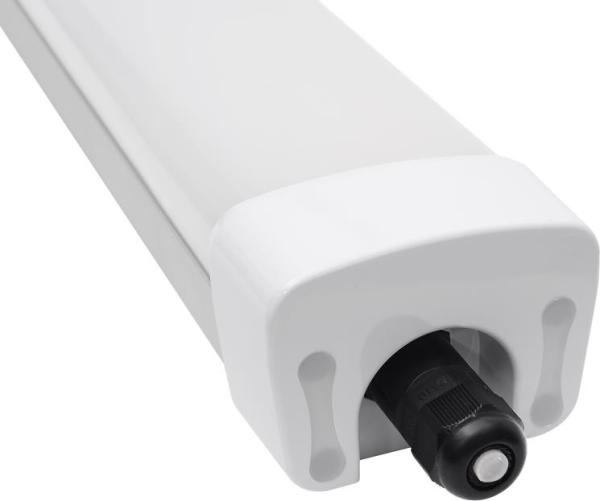

LED TRI-PROOF LIGHT
Design Lights Consortium (DLC)-qualified LED Tri-proof Lights are
engineered for powerful lighting in harsh
environments. A vapor tight housing protects the light source from
water and dirt, while new generation LEDs
and drivers provide higher efficacy and greater energy savings. The
IP66-rated fixtures are designed to
replace less-efficient fluorescent strip lights in car wash
operations, airports, tunnels, maintenance areas,
parking garages and stairwells.
Description of Led Tri-Proof Light
1. Transparent toughened glass, could withstand the heat of high
energy.
2. Adopt constant current drive with the functions of protection
against short circuit and overvoltage.
3. Special designed Hot Air Path for heat air to be led and keep
the long lifespan of the high bay.
4. The high bay could not produce electromagnetism to interference
with other electrical appliances & Electrical grids with great EMC.
The driver has good EMI(Electromagnetic Immunity).
5. production of ability:100,000pcs per month.
6. Unique heat dissipation structure:
(1) Extra aluminum board on the aluminum housing.
(2) Thermal Grease on the aluminum board.
Features:
• Suitable for wet location
• ETL& Premium DLC 120-140lm/w;
• 5years warranty；
• UGR less than 20
• 0-10V dimmable is available. Compatible with DALI Dimmer
• IP65; 100-240V;
• Waterproof, Dustproof, Moisture-proof
• Over 60% energy saving compared to fluorescent fixtures
• Excellent thermal conductivity and heat dissipation
• High optical PC cover with 93% transmission
• Stainless Steel spec grade clips
• Lifetime over to 50,000 hours
• Multiple mounting option
Application:
Food Processing
Facilities
Warehouses
Parking Garages
Wet Environments
Walkway Canopies
Harsh
Environments
Hospitals
School
Gymnasiums
Recreation Centers
PRODUCT BENEFITS
OPERATIONAL:
3X greater lamp life than fluorescent;
supported by industry-leading 5 years warranty;
50,000-hour lamp life reduces;
long-term maintenance costs;
Sealed, vapor-tight, water-resistant;
IP65 fixture;
SAFETY
High shock resistance
Negligible light
depreciation over time
Superior light output
Tamper-proof housing
SUSTAINABILITY
Lack of UV or IR minimizes
concerns with fading or
discoloration
Mercury-free, allowing for
non-hazardous disposal
Installation methods:
1 Suspend Mounted
2 Surface Mounted
Please read this manual to understand and safely use this product.
The product can be used at the voltage of 100-240V AC,50/60HZ.
INSTALLATION INSTRUCTIONS
(1) Consult a qualified electrician to ensure the correct branch
circuit conductor.
(2)The product should be installed and operated by a qualified
electrician or technician in
accordance with relevant local codes.
(3)Risk of electric shock. Ensure that the main power source is off
when wiring or soldering
the sections of the product.
MAINTENANCE
(1) Before cleaning the product, ensure it has been disconnected
from the power supply.
(2)Use a dry or slightly moistened cloth for cleaning.
(3)Never use any chemicals or abrasive materials for cleaning.
Special constructions for the combination of aluminum housing and
PC cover.
Double layers waterproof design to avoid the leak between aluminum
housing and PC cover.
Double layers waterproof design
The secondary operation to ensure smoothness for the cross-section
of aluminum housing and PC cover, so the silicone cover can be
tightly attached to the smooth cross-section.
1. Irregular of the aluminum housing and PC cover
2. Secondary operation to smooth the cross-section of aluminum
housing and PC cover
3. The smoothness of the aluminum housing and PC cover. Easy visual management-drawing waterproof lines on the aluminum
housing body
Fix the waterproof covers until the plastic cover edges cover the
waterproof lines
1. Silicone cover attach the aluminum housing and PC cover
2. Attach the plastic cover through the wires
3. Attach the plastic cover on the aluminum housing and PC cover,
can see the waterproof line
4. See the waterproof line on other sides
5. Use a screwdriver and screws to fix the covers
6. Finished and the plastic cover edges covered the waterproof
lines
Using Premium Pure Gold Wire for LED chips
Premium 99.99% pure gold wire
1. Double gold wire welding technology
2. Good Conductivity
3. Good welding
4. Long life span
5. Quality assurance
Driver
Our driver is full of heat dissipation silicone inside
1. Waterproof
2. Dustproof
3. Moistureproof
4. Good heat dissipation
5. Extending the life of electronic components
Testing before shipping for Led Tri-Proof Light
1.A series of testing like shaking test, low and high-temperature
test(-20°C~ 45 °C)drop test from the height of 1.2m in 6
directions, hi-pot test 4800V for 1 min and so on.
2.QC in every production process
3.Great material for heat sink:
Aluminum board and Aluminium housing guarantee double
heat-releasing to avoid light depreciation and prolong lifespan up
to 50,000Hr
