Performance characteristics
1. Anti-glare function: The transparent parts adopt advanced
lighting optical principle optimization design, with uniform and
soft light, no glare, and no ghosting, which effectively prevents
construction workers from producing discomfort and fatigue.
2. Energy saving of light effect: The selected gas discharge light
source has high luminous efficiency, long service life, a life
expectancy of up to 50,000 hours, power factor greater than 0.97,
high luminous efficiency, and good light transmission.
3. Anti-seismic function: Multi-channel shockproof structure and
integrated design ensure long-term safe operation in the
high-frequency, multi-frequency vibration environment.
4. Applicable environment: The high-strength alloy shell is used
for special surface spraying and sealing treatment, which can be
used for a long time under high temperature and humidity and
various corrosive and harsh environments.
5, installation methods: seat type, ceiling type and ceiling type
and other installation methods, to adapt to different job site
lighting needs. Electronic and mechanical dual protection
automatically cut off the power after opening, increase the use of
security and stability, reliability.
Features:
• Suitable for wet location
• ETL& Premium DLC 120-140lm/w;
• 5years warranty；
• UGR less than 20
• 0-10V dimmable is available. Compatible with DALI Dimmer
• IP65; 100-240V;

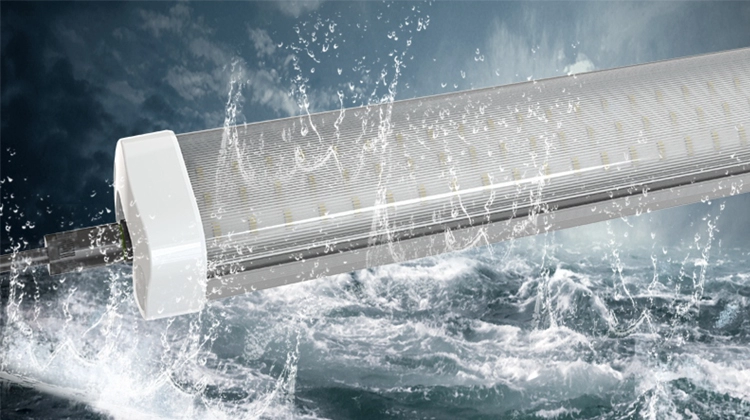

• Waterproof, Dustproof, Moisture-proof
• Over 60% energy saving compared to fluorescent fixtures
• Excellent thermal conductivity and heat dissipation
• High optical PC cover with 93% transmission
• Stainless Steel spec grade clips
• Lifetime over to 50,000 hours
• Multiple mounting option

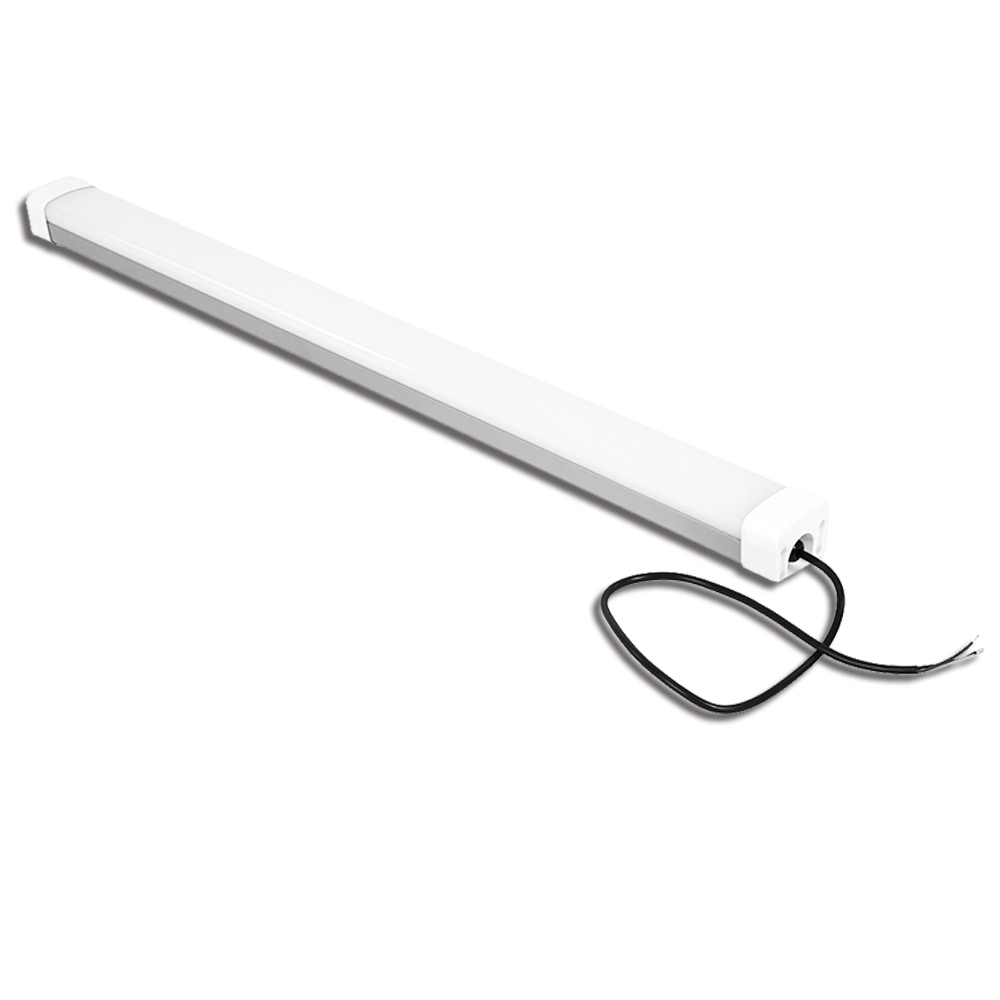

LED Linear Batten Light LED Tri-proof Light
* Aluminum housing
* Hard anodic oxide coating, with corrosion protection
* With bridgelux led, initial efficiency 150lm/w
* LED Driver, Efficiency 95%. 5 years warranty
* Low Lumen decay, L70=50,000hours
* Long lifespan 10,000hours
* IK08 & IP65
* Surge protection: 4kv
Energy Saving
LED Tri-proof Light is suitable for applications where a low energy
solution is required or when you want to cut down your energy
spending. It saves up to 80% of energy compared to traditional
fluorescent tubes.
Multi-installation Methods
Our LED Tri-proof Lights comes with many options that can allow you
to mount it anywhere and anyhow from wall mounting installation or
suspensions.
Components Saving
Unlike the traditional fluorescent tubes, IP65 Tri-proof Light does
not require a ballast and a starter to operate.
Extremely long life
GYLED LIGHT Tri-proof Light lowers the cost of maintenance by
reducing the frequency of re-lamp.
Application:
Food Processing
Facilities
Warehouses
Parking Garages
Wet Environments
Walkway Canopies
Harsh
Environments
Hospitals
School
Gymnasiums
Recreation Centers
Installation methods:
1 Suspend Mounted
2 Surface Mounted
Please read this manual to understand and safely use this product.
The product can be used at the voltage of 100-240V AC,50/60HZ.
INSTALLATION INSTRUCTIONS
(1) Consult a qualified electrician to ensure the correct branch
circuit conductor.
(2)The product should be installed and operated by a qualified
electrician or technician in
accordance with relevant local codes.
(3)Risk of electric shock. Ensure that the main power source is off
when wiring or soldering
the sections of the product.
Using Premium Pure Gold Wire for LED chips
Premium 99.99% pure gold wire
1. Double gold wire welding technology
2. Good Conductivity
3. Good welding
4. Long life span
5. Quality assurance
Driver
Our driver is full of heat dissipation silicone inside
1. Waterproof
2. Dustproof
3. Moistureproof
4. Good heat dissipation
5. Extending the life of electronic components
Benefits
Anti-glare, with low UGR. Tri-proof lights made with milky diffuser
emit a soft, warm light that is safe for our eyes. Especially when
the fittings are mounted in the parking lot, a light with low UGR
is safe for drivers to drive a car.
Maintenance-free – Tri-proof fixtures are heavy-duty and specially
made to withstand harsh conditions. It requires less maintenance
and has a long life span.
IP 65 waterproof – For applications like farms, slaughter-houses,
food factories, etc, IP65 fixtures are a must for the wet
environment.
Long life span – Working hours are more than 50000 hours
High efficiency – High light output from 130lm/w to 140lm/w
Simple wiring
Easy installation
Applications
LED Tri-proof lights are designed for rough conditions and moist
environments. It’s perfect for commercial lighting, warehouse
lighting, parking garage lighting, supermarket lighting, outdoor
areas, pedestrian bridges, awning backlighting, and more.

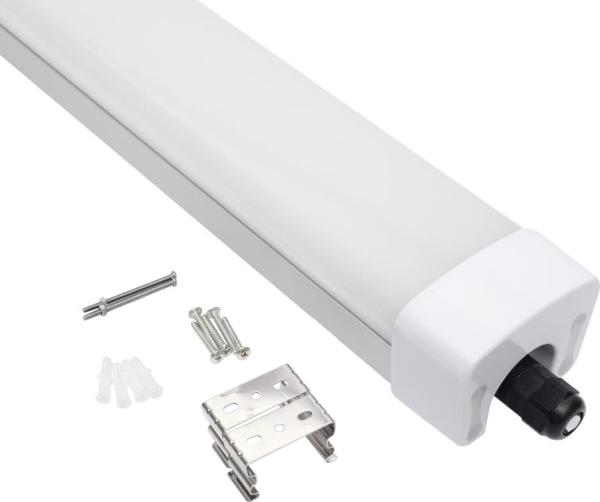

Installation method:
Tri-proof fixtures can be mounted on a wall with an included
hardware kit, or suspended from ceilings with hanging kits.
Considering the working environments, the surface mounting method
is the most commonly used.
Pros:
Cheap, low cost
Higher wattage, more bright light output
More functions: On/Off, Emergency, DALI
Easy replacement, the light source is replaceable. No need to
remove the whole fixture.
Aluminum profile, good heat dissipation
Higher wattage, more bright light output
More length options, up to 3 meters
Linkable, enable the lamps to be interconnected
Quick installation, easy wiring
More functions: Dimmable, Emergency, Sensor
