New design 40W 60W Hidden UV-C Air Disinfection Lights
GY1331UV40/GY1359UV60 is the hidden UV-C light series for air
disinfection. The product features a broad-spectrum disinfection
effect. Tested by the Guangdong Detection Center of Microbiology,
its disinfection rate of various types of bacteria, fungi, viruses,
and so on, has reached more than 99%.
Application:
This product is suitable for indoor air disinfection in offices,
restaurants, cafes, bars, shopping malls, schools, homes,
hospitals, industry, museums, retail and other places.
Main Performance and Parameters:
| Parameters Items | GY1331UV40 | GY1359UV60 |
| Rated Power | 40W | 60W |
| Input Voltage | AC220-240V 50/60 Hz |
| Power Factor | ≥0.9 |
| UV-C Light Type | Philips TUV PL-L UV-C Light |
| Peak Wavelength | 253.7 nm |
| Light Source Life | 10000H |
| Disinfection Type | Common bacteria, viruses, and other microorganisms |
Recommended Using Area Dimension | 10-15m² | 15-20m² |
| Recommended Filter Replacement Frequency | 3-6 months |
| Working Duration Limit | Available for long-term operation |
| IP Rating | IP20 |
| Electric Safety Class | CLASS I |
| Surface Treatment | Anti-corrosive powder coating |
| Dimension | 318*133*121mm | 638*133*121mm |
| Net Weight | 2.1Kg | 3.8Kg |
| Executive National Standard | GB28235；GB19258；Q/141000 GY008—2021
|
Features:
1) Appearance design: The overall shape of the product combines two elements:
semi-circle and rectangle, with simple, concise, and unrestrained
lines. It is suitable for installation in indoor living and
studying spaces.
2) Disinfection principle: The product emits UV-C light to irradiate the flowing air, which
can inactivate bacteria, viruses, and other microorganisms in the
air, thus serving the purpose of disinfection of the air.

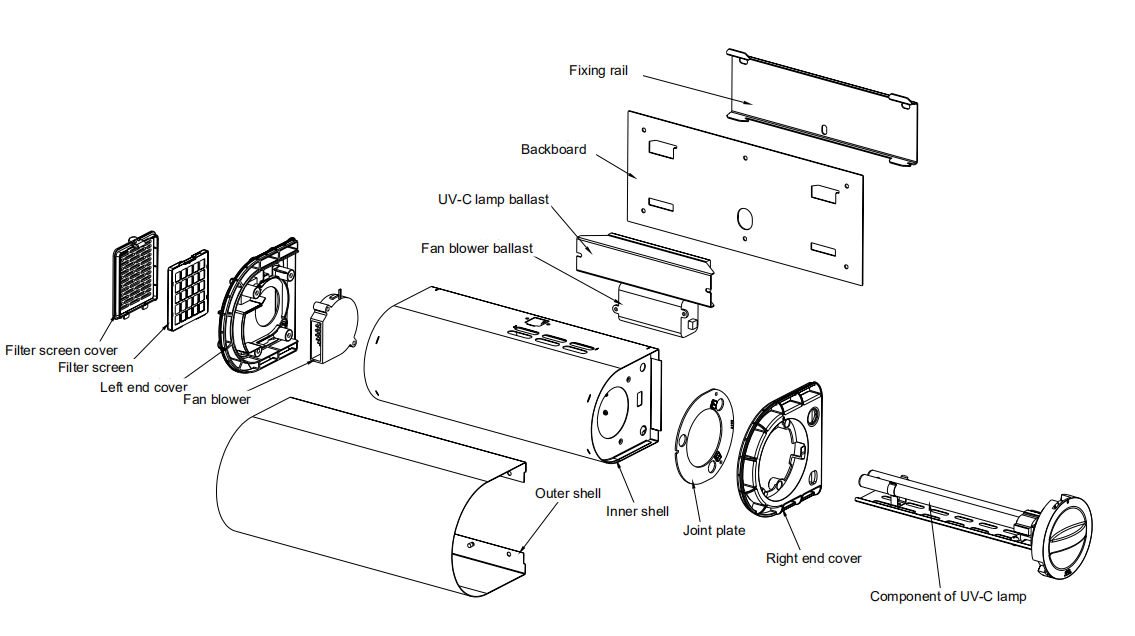

3) Hidden UV-C Light: The product adopts a hidden UV-C light structure design in which
the UV-C light works in a "closed" metal cavity, ensuring that the
UV-C light does not leak so that the product can work for a long
time and will not cause harm to people, animals, and indoor
objects.
4) Active convection: The product is designed with a fan at one end to introduce indoor
air into the disinfection chamber. The air after disinfection by
UV-C light flows out from the upper air outlet to the indoor space,
with active convection to disinfect the air cycle.
5) Work indication: The product is designed with a work indicator light. If the power
is powered on but the indicator light does not light up, it means
the product's UV-C light is damaged, and a new UV-C light is
required.
6) UV-C light replacement: The UV-C light can be removed by unscrewing the knob on the right
side of the product, the UV-C light can be replaced by removing it
from the lamp base and replacing it with a new one, and then
screwing the knob in the reverse direction to complete the light
source replacement. The replacement process is simple and
convenient without tools or circuit connection problems.
7) Filter replacement: The filter designed at the left side end cap of the product
ensures the cleanliness inside the product, and the filter can be
taken out for replacement by pressing the buckle of the filter
cover without any tools.
8) Installation method: The product is fixed by hanging. The mounting plate is fixed on
the mounting surface first, and then the product is hung on the
mounting plate. The anti-detachment structure ensures safety if the
product moves vertically upward after fixing. The whole process of
installation is simple and safe.
Troubleshooting:
| SN | Fault Description | Cause of Fault | Troubleshooting Method |
| 1 | The power is on, the indicator light is off, and the fan is working
normally | UV-C light is damaged | Replace with a new UV-C light |
| 2 | The power is on, the indicator light is off, and the fan does not
work | The socket has no electricity, or the product switch is faulty | Check whether the socket is electrified. If the socket has
electricity, check whether the input circuit such as the product
switch is normal |
| 3 | The fan noise has increased significantly | Too much dust on the filter | Replace with a new filter |
