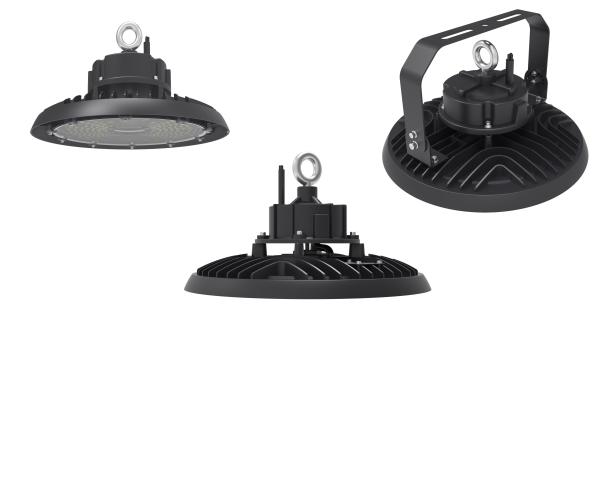

GY265GKII Series LED UFO High Bay Light
Product Description:
1. 70/90/120 degree Lens: The outer ring and inner ring of the lens
are tightly fixed to avoid the influence of lens deformation on
optics.
2. Wire connection between LED driver and PCB by junction boxes,
easier replacement.
3. Less glare and spill light by recessed structure.
Technical Parameter
| Model No.: | GY265GKII | GY320GKII |
| Power Watt(W): | 80W/100W/120W | 150W/200W |
| Input Voltage(V): | AC100～240V |
| Lighting Efficiency(lm/W): | 150lm/w(180lm/W optional) |
| Power Factor: | ≥0.95 |
| CRI: | Ra＞70/80 |
| Color Temperature(K): | 2200K~5700K |
| Protection Grade: | IP66/IK08 |
| Beam Angles | 70°/90°/120° |
| Ambient Temperature(℃): | -30～50℃ |
Working environment
humidity | 15%～90% RH |
| Body Dimensions(mm) | Φ265×H158mm | Φ300×H160mm |
| Material | Die-casting alimunum housing + PC lens |
| Housing Color | Black |
| Reflector | PC/Aluminum reflector, tempered glass |
| Dimming Function | 0-10V,PWM,DALI, Smart control management system |
Features:
1. 5 years warranty for the whole light
2. IP66 waterproof suitable for wet places such as swimming pools
3. RoHS&CE approved.
4. The company's private molds, very competitive price
5. You can change the brand of the driver and the SMD LEDs as you
require.
6. As your application, you can change the function, sensor,
dimming, beam Angle, and so on.
Advantages:
1. Protection level: IP66, IK08.
2. Lifetime: >50000H, 5 years warranty.
3. LED drivers options: Philips/MOSO/local brand can be optional.
4. It has a variety of light distributions: 70°/90°/120° to meet
the lighting needs of different places.
5. Extra Optional: PC/aluminum reflector, tempered glass.
6. Dimming Function: 0-10V,PWM,DALI, Smart control management
system.
7. Our engineering team can provide free lighting designs to help
you know the exact wattage and quantity of your projects.
