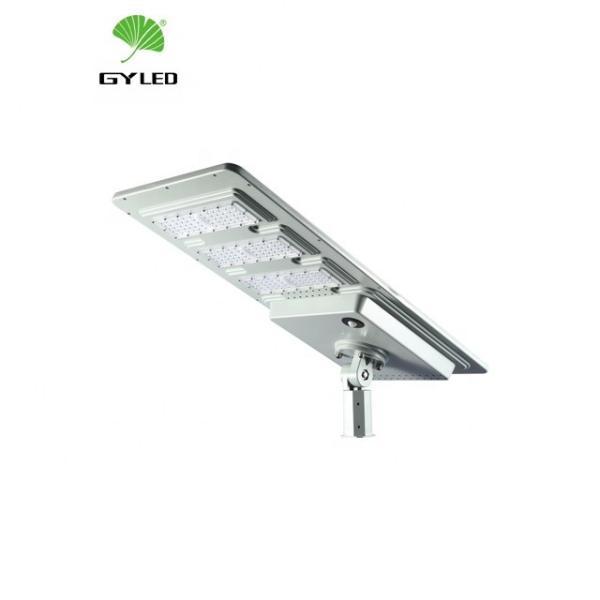

GY6637TYNLD is the latest generation in our All-in-One solar street/car park luminaires. With a lower profile sleek look, it provides a dependable light source with its powerful new light engine boasting up to 130lm/W with a range of optical distributions catering for a range of applications. The PV panel efficiency at 18%.
High Efficiency, Environmentally friendly led flood light.
Instantaneous start, easy installation, and complete with an efficient optical design.
High strength die-casting aluminum heat sink.
Covered with an electrostatic spray treatment. Main body made of die-casting aluminum.
Polycarbonate diffuser, anti ­high temperature, anti-ultraviolet,
high quality LED chips, high-efficiency light distribution curve.

EQUIPMENT AND COMPONENTS
Genuine quality equipment and components with guaranteed energy performance

Material: Aluminium Die-casting
LED Lamp: 3030 LED
Fixture power watt: 20W/40W/60W/80W
Color temperature: 2700-6000K
Solar Panel type: Monocrystalline silicon
Solar panel: 18V 25W/18V 35W/18V 45W/18V 70W
Battery Type: LiFePO4 battery (Lithium-Iron Phosphate)
Battery: 12.8V 9Ah / 12.8V 11Ah / 12.8V 18Ah /12.8V 28Ah
Charging Time: 10 Hrs
Battery (Full Charge) operating duration: 48 Hrs
Mounting Height: 5 – 8m
Working Temperature: -20℃ – +60℃

LED Chip

SMD3030 or SMD5050, high luminous efficiency: up to 200lm
Lifespan>50,000 hours

Heat sink

Aluminum material is with fin-type design for better heat dissipation

Sensitive & Stable Motion Sensor
The lighting time of GYLED solar street light can last 5-6 nights with about 60 times induction per night.

Easy Installation

GYLED solar street light can be mounted on the wall or the pole with screws provided.

Solar street lights consist of 5 main parts:

Solar Panel
The solar panel is one of the most important parts of solar street lights, as the solar panel will convert solar energy into electricity. There are 2 types of solar panels: monocrystalline and poly-crystalline. The conversion rate of the mono-crystalline solar panel is much higher than poly-crystalline.

Lighting Fixture
LED is usually used as a lighting source of the modern solar street light, as the LED will provide much higher Lumens with lower energy consumption. The energy consumption of the LED fixture is at least 50% lower than the HPS fixture which is widely used as a lighting source in Traditional street lights. LEDs' lack of warm-up time also allows for use of motion detectors for additional efficiency gains.

Rechargeable Battery
The battery will store the electricity from the solar panel during the day and provide energy to the fixture at night. The life cycle of the battery is very important to the lifetime of the light and the capacity of the battery will affect the backup days of the lights. There are usually 2 types of batteries: Gel Cell Deep Cycle Battery and Lead Acid Battery and many more.

Controller
The controller is also very important for the solar street light. A controller will usually decide to switch on /off charging and lighting. Some modern controllers are programmable so that the user can decide the appropriate chance of charging, lighting, and dimming.

Pole
Strong Poles are necessary to all street lights, especially to solar street lights as there are often components mounted on the top of the pole: fixtures, panels, and sometimes batteries. However, in some newer designs, the PV panels and all electronics are integrated into the pole itself. Wind resistance is also a factor

Suitable For:
Streets
Highways/ Roadways/Sidewalk
Pathways
Parking lots
Parks / Open areas
Riverside pavements
Factories
Perimeter fences
Jetties
Schools
Campuses
Commercial
Private compounds
