Overview
IP66, IK09 Protection.
Lifetime: 500000H.

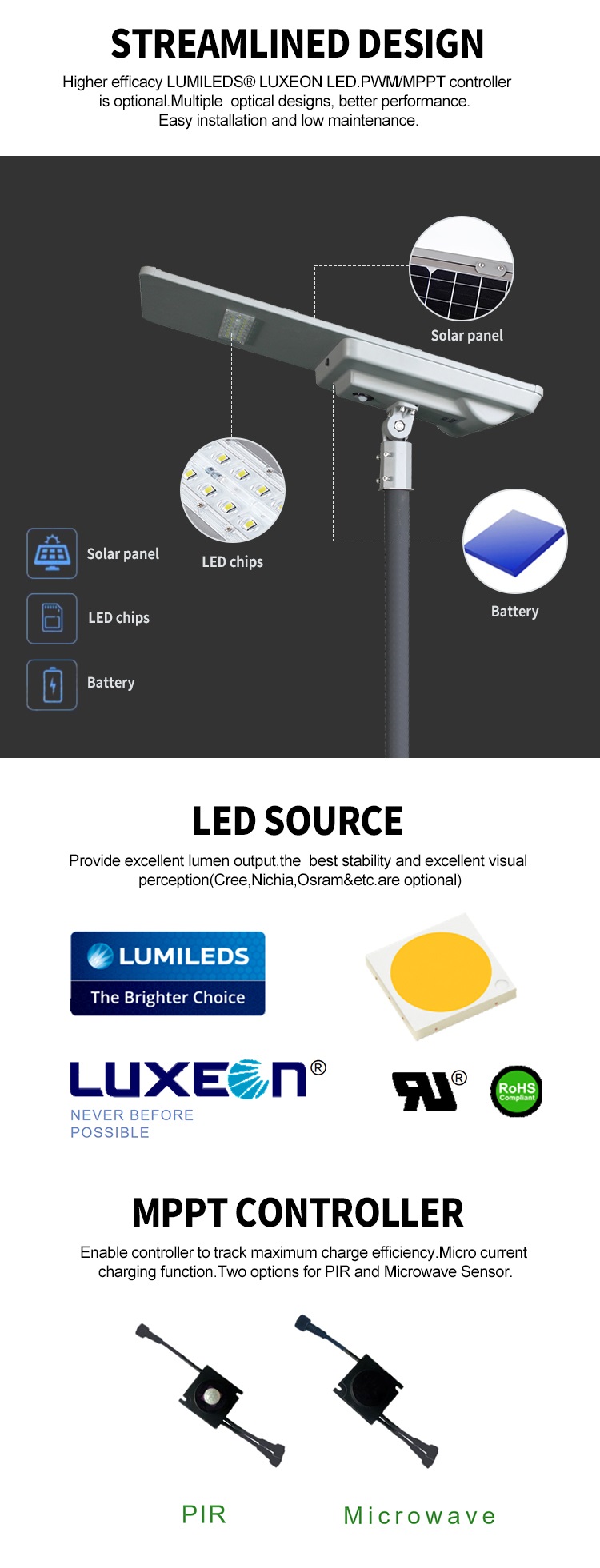

Streamlined design. Higher efficacy supply.
The MPPT controller is optional. Multiple optical designs, better
performance. Easy installation and maintenance.
GY4518YNLD series Solar LED street light will provide the best
lumen output, the best stability, and a very long lifetime. Provide
over 5 years warranty for the whole fixture.
Benefits
LED solar streetlight: stand-alone product, no electricity bill,
and no grid connection.
Very long lifetime: innovative high heat resistance NiMH battery &
intelligent lighting management.
Lighting service all night long: enhance personal safety, economic
and social activities.
User friendly: Plug & Play and All-in-one concept, easy
installation.
Connected product: Bluetooth enabled for product registration,
remote monitoring, troubleshooting, and lighting profile
management.
Adjusted angle: The installation angle can be adjusted to make the
solar panels face the sun and improve the charging efficiency to the
greatest extent.
Convenient maintenance: All components can be easily replaced.
Sensor control system:
When the illumination is less than 10lux, it begins to work. | Induction time | Somebody under the light | Nobody under the light |
| 2H | 100% | 30% |
| 3H | 50% | 20% |
| 6H | 20% | 10% |
| 1H | 30% | 10% |
| Daylight | Automatic closing |
Advantages:
1. Solar street lights are environmentally friendly, easy to
install, and offer tremendous light output. These lights are ideal
for all sorts of uses and their modern design has found favor with
everyone.
2. Solar street lights can be easily installed and moved and
deliver free, renewable energy which is stored in a battery ready
to be used when darkness falls. Furthermore, solar street lights
are ideal for areas where pulling and digging power cables are not
feasible or possible. The cost of installing a solar street light
is cheaper than the cost of installation and earthwork needed to
construct a grid-connected street light from the nearest power
location.
3. Solar street lights are a great way to light up a home or
neighborhood for nighttime safety.
Technical DataSheet
ITEM | GY4518TYNLD | GY4518TYNLD | GY4518TYNLD |
Nominal Power | 30W | 40W | 50W |
Solar Panel Type | Monocrystalline |
Solar Panel Parameters | 18V 40W | 18V 50W | 18V 60W |
Battery Type | LiFePO4 |
Battery Parameters | 12.8V 18AH | 12.8V 24AH | 12.8V 27AH |
System Voltage | 12V |
LED Brand | Lumileds |
Light Distribution | II-M, III-M |
CCT | 2200K~6500K |
Charging Time | 6Hours |
Working Time | 2-3 Days(Auto Control) |
Protection Grade | IP66/IK09 |
Luminous Efficiency | 170lm/W |
Operation | -20℃ to 60℃ |
Net Weight(kg) | 11.4 | 13 | 14.5 |
Gross Weight(kg) | 13.3 | 15 | 16.5 |
Package Dimensions(mm) | 830*455*180 | 975*455*180 | 1083*455*180 |
Material | Aluminum |
Luminous Flux | 5100lm | 6800lm | 8500lm |
Warranty | 5 Years |
ITEM | GY4518YYNLD | GY4518TYNLD |
Nominal Power | 60W | 80W |
Solar Panel Type | Monocrystalline |
Solar Panel Parameters | 18V 80W | 18V 100W |
Battery Type | LiFePO4 |
Battery Parameters | 12.8V 30AH | 12.8V 42AH |
System Voltage | 12V |
LED Brand | Lumileds |
Light Distribution | II-M, III-M |
CCT | 2200K~6500K |
Charging Time | 6Hours |
Working Time | 2-3 Days(Auto Control) |
Protection Grade | IP66/IK09 |
Luminous Efficiency | 170lm/W |
Operation | -20℃ to 60℃ |
Net Weight(kg) | 15.5 | 18 |
Gross Weight(kg) | 19.5 | 23.5 |
Package Dimensions(mm) | 1447*455*180 | 1577*455*180 |
Material | Aluminum |
Luminous Flux | 10000lm | 13600lm |
Warranty | 5 Years |
Features
1. Flexible selection of high lumen and high luminous flux
customized the best solution of a luminaire according to local
sunshine.
2. Integrated design, easy installation, each component can be
easily replaced and maintained, saving cost.
3. The intelligent controller matches the PIR infrared or
intelligent microwave sensor to ensure the effective lighting time
of the lamp.
4. Adopting high efficiency monocrystalline silicon and conversion
rate of 19.8% solar panels, grade A1 32650 battery cells excellent
Lithium iron phosphate battery.
5. Using special plug connector, color design Fool-proofing, with
anti-wrong connection function.
6. Adopting adjustable mounting arms can be adjusted in many
angles, suitable for installation requirements of different
latitude regions and different type poles.
7. Professional waterproof design, protection grade IP66.
8. Wind resistance rating 65m/s.
