Aluminum alloy high quality IP66 LED UFO Highbay Light fixture 60w
90w 120w 150w showroom lighting

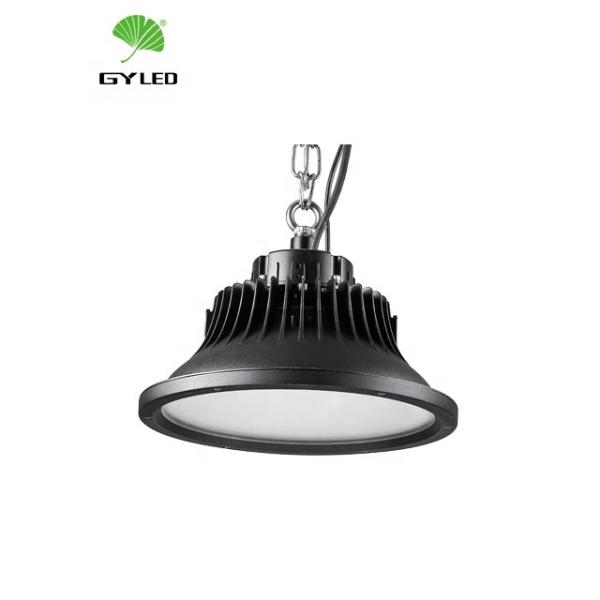

GY530Y290GKII LED UFO High Bay Light
Distribution and applies a specially designed lighting housing can
make the highbay light fixture
to realize the different beam angles for the light and to achieve
the various lighting distribution solutions of the luminaire.
CE&RoHS Certificates.
5 years warranty
GYLED LED Lights Warranty:
We do the warranty not from guarantee words or paper, but from our
quality confidence and responsibility to our customers
-----(1) If the driver failed, we'll send a new driver.
-----(2) If the LED failed, we'll send a new LED.
-----(3) Unclear reason, we'll send full new set.
Application: LED UFO Highbay widely used in Warehouses, libraries, workshops,
shopping malls, supermarkets, shops, restaurants, sports centers,
cinemas, hospitals, clothing stores, bars, and other indoor
lighting places.
Lighting solutions service: Lighting and circuitry design, DIALux Evo layout, LitePro DLX
layout
Anti-glaring light is required more and more for applications where
people don't feel comfortable with the glaring light, especially in
the stadium.
Product Description:
Parameter | GY530Y290GKⅡXXX/220AC |
Light source model | LED |
Rated power | 60～150W |
Input voltage | AC220V/50～60Hz |
Power factor | ≥0.95 |
Lighting efficiency | 120～150Lm/W |
Color temperature | 3000K～5700K |
CRI | Ra70(Or Ra80) |
IP Grade | IP66 |
Glass Grade | CLASS I |
Working temperature | -40～50℃ |
Surface treatment | Anti-corrosion spray |
Anti-corrosion | Salt spray test passed |
Fixed method | Bracket, boom (inch 4 inch thread), hook, ring |
Product dimension | Φ350*210mm |
Net weight | 4.7Kg |
Carton dimension | 400*400*250mm |
Pcs in carton | 1 |
DIE-CASTING ALUMINUM DESIGN
1. Die-casting aluminum casing and high intensity toughened glass
lens cover
2. High efficiency and power factor LED driver
3.Install easily
4.Disassemble easily
5.Wide application
5. Black and white color is available
6. High shock & vibration resistant
7. Patented fixture design and Led package technology.
Fixture Power | Luminous Flux | Lighting Efficiency | Power Factor | Body Dimensions | Body Weight |
60W | 7200-10800LM | 120-150LM/W | ≥0.95 | Φ350*210mm | 4.7kg |
80W | 9600-12000LM |
100W | 12000-15000LM |
120W | 14400-18000LM |
130W | 15600-19500LM |
150W | 18000-22500LM |
Application
Applicable to workshops, factories, warehouses, highway toll
stations, gas stations, large supermarkets, exhibition halls,
stadiums, and other places where industrial and mining lighting is
required.
Certificates
After several years of endeavor and development, concentrating on
the innovative spirit, GYLED established a professional management
team. The company is guided and operated according to requirements
from management systems of ISO9000, ISO14001 and OHSAS18001, and
with introducing ERP IMS (Information Management System),
management decision becomes more scientific and efficient. We will
also continuously optimize the management system, provide an
excellent platform, and ensure our every employee to create value
for users.

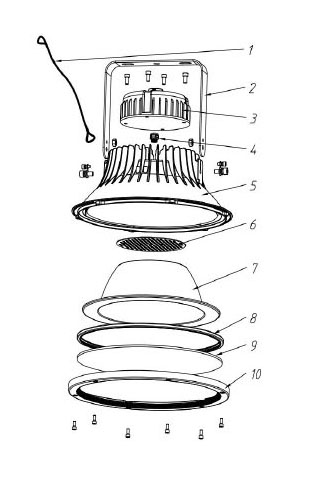

Item | Name | Material |
1 | Safety cable | Stainless steel |
2 | bracket | steel |
3 | Driver | AC driver |
4 | waterproof connector | steel |
5 | lamp body | Aluminum |
6 | LED module | SMD LED chips |
7 | Reflector | PC |
8 | Seal ring | Silicon |
9 | Lens | Glass |
10 | Glass Cover Ring | Aluminum |
ABOUT US
We, Shanxi Guangyu LED Lighting Co., Ltd, established in 1988, is a
professional LED lighting products manufacturer in Shanxi province
of China. Our Sales office and R&D center both are in Shanghai.
GYLED is your provider of premier quality LED lighting products and
solutions. Our main products are LED Industrial Highbay lights, LED
Flood Area lights, LED Streetlights. With our long-term great
efforts, our products comply with CE, RoHS, ERP, GS, SAA, UL, cUL,
and CCC certificates. We aim at focusing on the best products with
high quality and low cost.
Shipment
1. DHL(a big discount).
2. TNT/FedEx/UPS.
3. DHL Airway express. About 3-5days you can get them by the door
of your home or office.
4. Seaway.15-25 days. It will definitely save your shipping cost
for the large order.
FAQ
Q1 What is your terms of payment?
T/T 30% as deposit in advance, and 70% balance before the shipment,
We'll show you the photos of the products and packages before you
pay the balance.
Q2 Can I get a sample order first?
Yes.Welcome sample order to test quality.
Q3 Is your enterprise a factory or trading company?
We are a manufacturer specializing in R&D.
Q4 What kind of products are you specializing in?
We focus on the LED street light, LED flood light, LED high bay
light, LED explosive proof light, and so on.
Q5 All LED lights have a warranty?
Yes.All kinds of products at least 3 years warranty.
Q6 What about the packing for bulk orders?
If the bulk order's quantity reaches the custom MOQ, we can provide
you the customer service.
