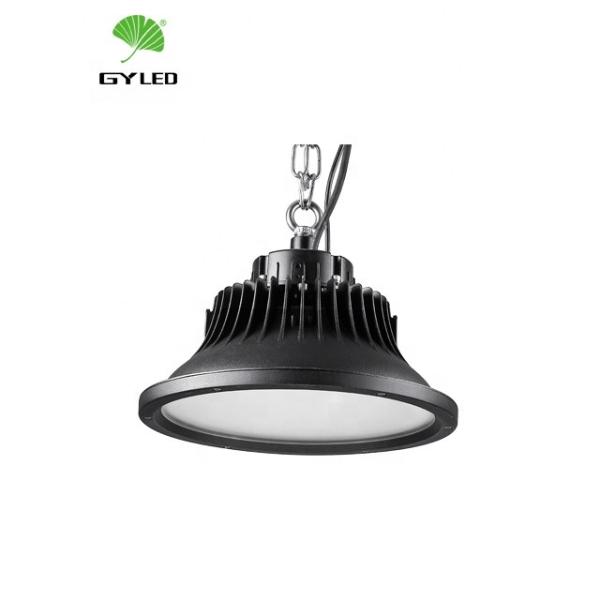

LED UFO Highbay widely used in Warehouses, libraries, workshops,
shopping malls, supermarkets, shops, restaurants, sports centers,
cinemas, hospitals, clothing stores, bars, and other indoor
lighting places.
Lighting solutions service: Lighting and circuitry design, DIALux
Evo layout, LitePro DLX layout
Anti-glaring light is required more and more for applications where
people don't feel comfortable with the glaring light, especially in
the stadium.
Advantages:
LED replacement for 200W 250W 400W HID fixtures
Energy-saving up to 80% than conventional HID systems
The luminous efficacy of light source over 135lm/w
Last 3 times longer than MHL or HID lamps
CCT range from 3000K to 5700K
Lifetime over 50,000 hours
5 years warranty
Lamps contain no lead or Mercury, ROHS compliant
Surge protection: 4KV
Suitable to use in enclosed fixtures
Fixture Power | Luminous Flux | Lighting Efficiency | Power Factor | Body Dimensions | Body Weight |
60W | 7200-10800LM | 120-150LM/W | ≥0.95 | Φ350*210mm | 4.7kg |
80W | 9600-12000LM |
100W | 12000-15000LM |
120W | 14400-18000LM |
130W | 15600-19500LM |
150W | 18000-22500LM |
GYLED LED Lights Warranty:
We do the warranty not from guarantee words or paper, but from our
quality confidence and responsibility to our customers
-----(1) If the driver failed, we'll send a new driver.
-----(2) If the LED failed, we'll send a new LED.
-----(3) Unclear reason, we'll send full new set.
Installation:
1. Bracket installation:
Unpacking: Open the box, take out the luminaire, check if the
luminaire is in good condition, and whether the accessories are
complete.
2. Fixing the lamp: Adjust the lamp bracket to rotate to the
required angle, lock the angle adjustment screw and fixing bolt.
According to the hole position of the bracket, the hole is punched
on the mounting surface, and the lamp is fixed on the mounting
surface by bolts.
3. Electrical connection: distinguish the polarity, connect the
power supply input lead of the lamp to the mains, and do a good job
of protection.
Professional Packaging
• Foam Protection to Withstand Harsh Transportation and Impact
• Carton and Pallet with Foam and Cling Wrap to Withstand Impact,
High Humidity in Containers, and Rainy Weather
• To Guarantee an Intact Condition when Receiving the Goods.
