Modular IP66 200w Led Dimmable Flood Lights Heat Extraction

Product Categories

Shanxi Guangyu Led Lighting Co.,Ltd.

Contact Now

Modular IP66 200w Led Dimmable Flood Lights Heat Extraction

Ask Lasest Price
Brand Name :	GYLED
Model Number :	GY296TG
Certification :	CE, RoHS, EMC, LVD
Price :	Negotiation
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	200000PCS PER YEAR
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

Modular IP66 200w Led Dimmable Flood Lights Heat Extraction

GY296TG Basic Parameter

1. GY296TG Basic Parameter

Model No.	Number of LEDs	Beam Angle	IP Rating	Class	Operation Temperature (°C)	Weight (kg)
GY296TG45W	56 pieces	30°	IP66	CLASS I	-40～40	2.7
GY296TG90W	112 pieces	60°				3.7
GY296TG135W	168 pieces	90°				4.7
GY296TG180W	224 pieces	120°				5.7

2. GY296TG Electrical Parameter

Model No.	Rated Power	Input Voltage(V)	Output Voltage (V)	Output Current (mA)	Power Factor	Power Efficiency
GY296TG45W	45w	176～305	42	960	≥0.9	≥90%
GY296TG90W	90w	176～305	42	1920	≥0.9	≥95%
GY296TG135W	135w	176～305	42	2880	≥0.9	≥95%
GY296TG180W	180w	176～305	42	3840	≥0.9	≥95%

3. GY296TG Optical Parameter

Model No.	Beam Angle(°)	CRI	Color Temperature (K)	Luminous Efficiency (LM/W)	Lumen Output (LM)
GY296TG45W	30° 60° 90° 120°	70	3000/4000	115	5175
		70	5000/5700/6500	120	5400
		80	3000/4000	105	4725
		80	5000/5700/6500	115	5175
GY296TG90W	30° 60° 90° 120°	70	3000/4000	115	10350
		70	5000/5700/6500	120	10800
		80	3000/4000	105	9450
		80	5000/5700/6500	115	10350
GY296TG135W	30° 60° 90° 120°	70	3000/4000	115	15525
		70	5000/5700/6500	120	16200
		80	3000/4000	105	14175
		80	5000/5700/6500	115	15525
GY296TG180W	30° 60° 90° 120°	70	3000/4000	115	20700
		70	5000/5700/6500	120	21600
		80	3000/4000	105	18900
		80	5000/5700/6500	115	20700

Waterproof Led Lighting120w Led Floodlight Industrial IP66 200w Outdoor Led Lighting

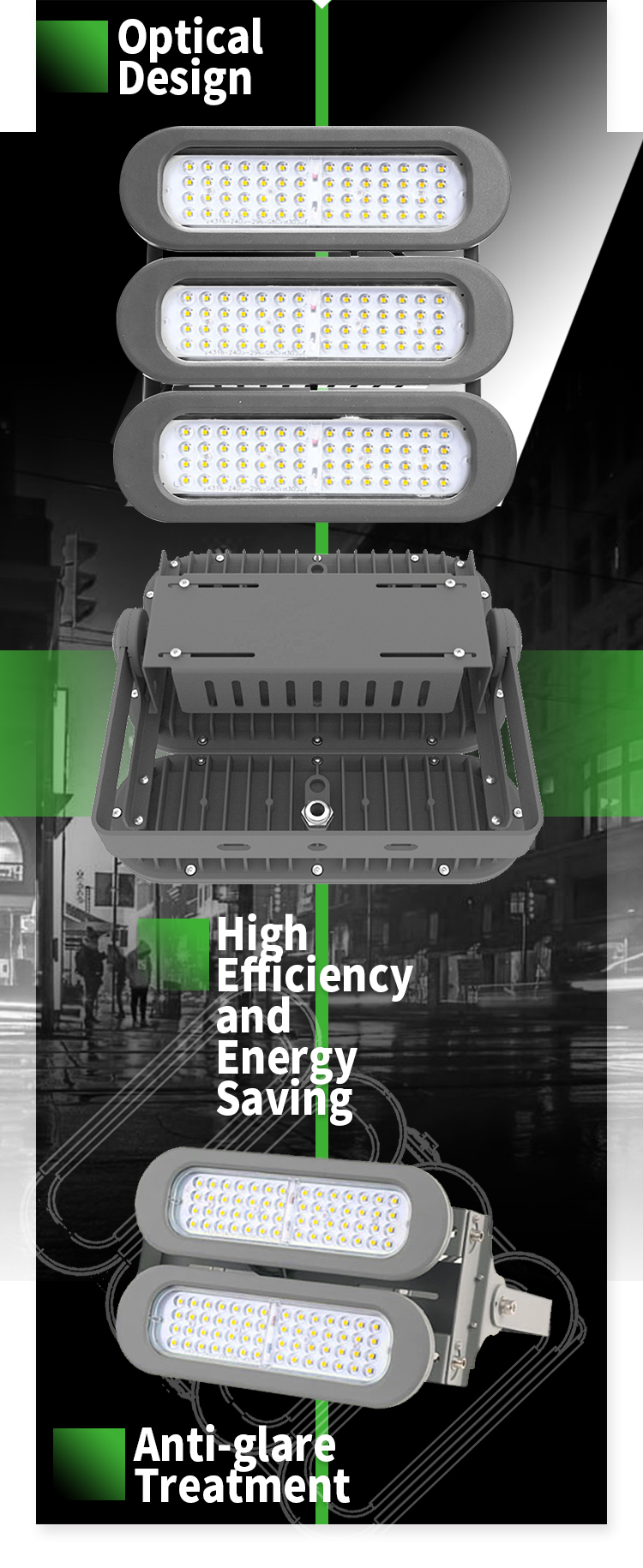

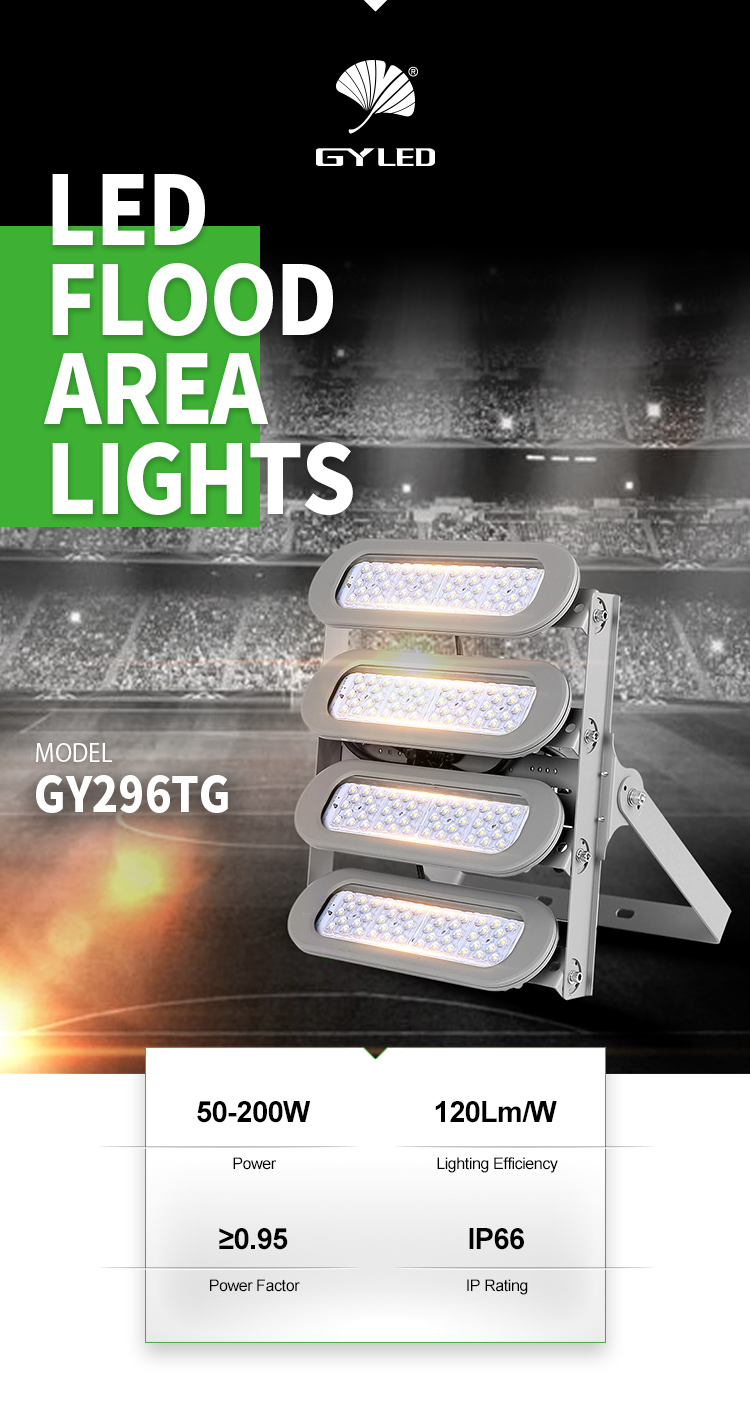

GY296TG LED Flood Light

1. High Luminous Efficiency: up to 120lm/w.
2. Multiple options of beam angle to meet different application requirement: 30°, 60°, 90°, 120°.

3. Light directions can be adjusted according to application requirements.
4. IP66.
5. Glass: IK06, PC lens: IK08.
6. Long lifespan: L80＞36,000 Hrs.
7. Excellent Heat Extraction: each module works separately and housing for LEDs and power supply are separate.
8. Anti-glare.
9. To be compatible with the Light control system.
10. Low weight & small size for easy mounting and maintenance, each 45w light module only 2.7kgs, up to 5.7kgs(180w).

【HIGH BRIGHTNESS SAVING】:

200W LED Stadium light includes 4 modular LED floodlights and special triangular combination accessories. You can change the angle and adjust the lighting area according to your preference, The maximum brightness can reach 24,000lm. This can perfectly replace traditional 2000W halogen lamps and save a lot of electricity bills
【SAFETY PERFORMANCE】:
Outdoor LED Flood light PC lens with unique optical structure, Uniform light diffusion, Long light projection distance, PC mask is not easy to break and more secure, Enhanced aluminum heat dissipation fins, Fully released heat, Ensure 50000 hours life, IP67 Waterproof, LED Floodlights outdoor can be used in heavy rain, Snow and high-temperature environment

Certificates
After several years of endeavor and development, concentrating on the innovative spirit, GYLED established a professional management team. The company is guided and operated according to requirements from management systems of ISO9000, ISO14001, and OHSAS18001, and with introducing ERP IMS (Information Management System), management decision becomes more scientific and efficient. We will also continuously optimize the management system, provide an excellent platform, and ensure our every employee creates value for users.

ABOUT US
We, Shanxi Guangyu LED Lighting Co., Ltd, established in 1988, are a professional LED lighting products manufacturer in the Shanxi province of China. Our Sales office and R&D center both are in Shanghai. GYLED is your provider of premier quality LED lighting products and solutions. Our main products are LED Industrial Highbay lights, LED Flood Area lights, LED Streetlights. Our products comply with CE, RoHS, ERP, GS, SAA, UL, cUL, and CCC certificates with our long-term great efforts. We aim at focusing on the best products with high quality and low cost.
