GY3615WXD LED Linear High Bay Light
Universal voltage AC100-240V 50/60Hz.
130LM/W for Lighting fixture.
Using high-quality SMD3030 LED Chips
Constant current power supply.
High Power Factor >0.95, Low THD Driver
Technical Parameter
| Model | GY3615WXD60/ AC | GY3615WXD120/AC | GY3615WXD180/ AC | GY3615WXD240/ AC |
| Qty of led module | 1 | 2 | 3 | 4 |
| Rated Power | 60W | 120W | 180W | 240W |
| Input Voltage | AC220V/50Hz |
| PF | ≥0.95 |
| Lighting Efficiency | ≥130lm/W |
| CCT | 3000K～5700K |
| CRI | Ra70 |

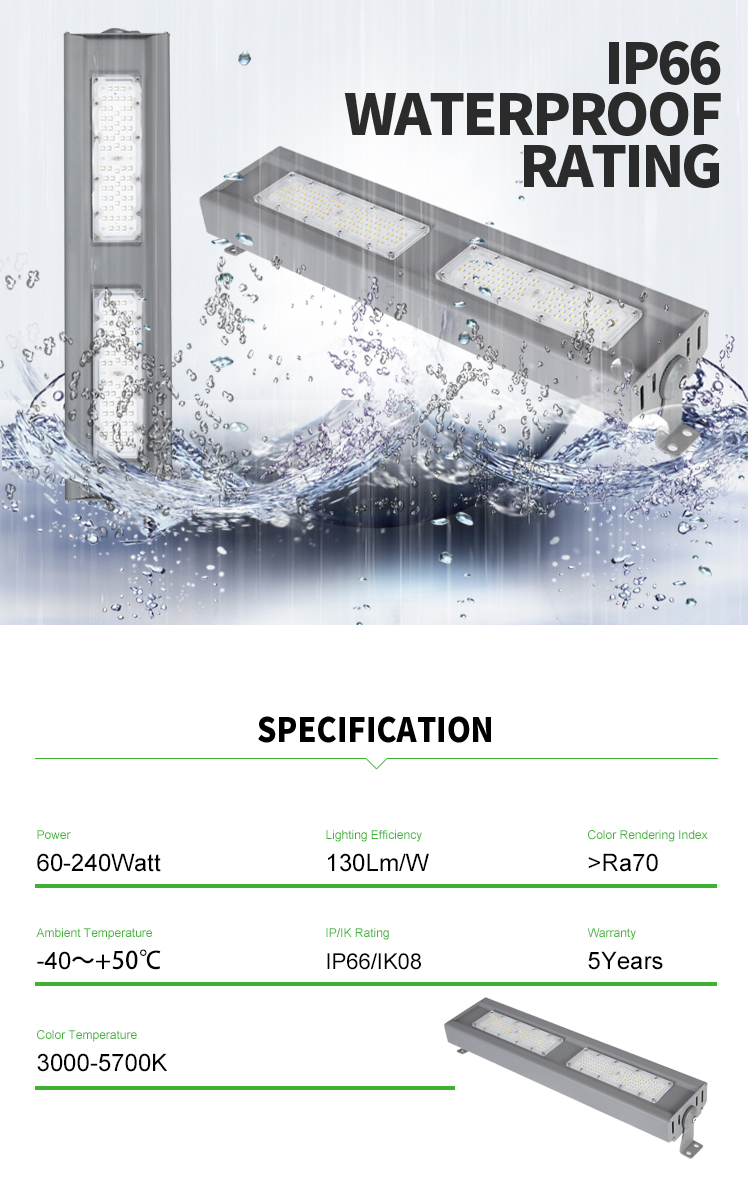

| IP Rate | IP66 |
| Electrical safety class | CLASS I |
| Working Temperature | -40～50℃ |
| Surface treatment | Anti-corrosion spraying + anodic oxidation |
Dimension (mm) | 429*150*122 | 719*150*122 | 1081*150*122 | 714*300*223 |
| Net Weight | 2.9Kg | 4.3Kg | 5.8Kg | 8Kg |
Package Dimension (mm) | 470*200*230 | 760*200*115 | 1120*200*115 | 760*380*115 |
| Packing qty on each box | 2 | 1 | 1 | 1 |
Product Description
1) Control interface: 0-10V and other control interfaces can be
reserved for the lamp, which can realize the dimming control of the
lamp.
2) Installation method: both ends of the luminaire are installed
with brackets, and 4 fixing holes at both ends are fixed on the
installation surface.
3) Angle adjustment: After the lamp bracket is fixed, the
installation angle of the lamp can be adjusted within ±90°, and
there is an adjustment scale indicator to ensure the unity of the
angle when the lamp is installed in batches.
4) Appearance design: The lamp is a long strip design with a simple
appearance and smooth lines.

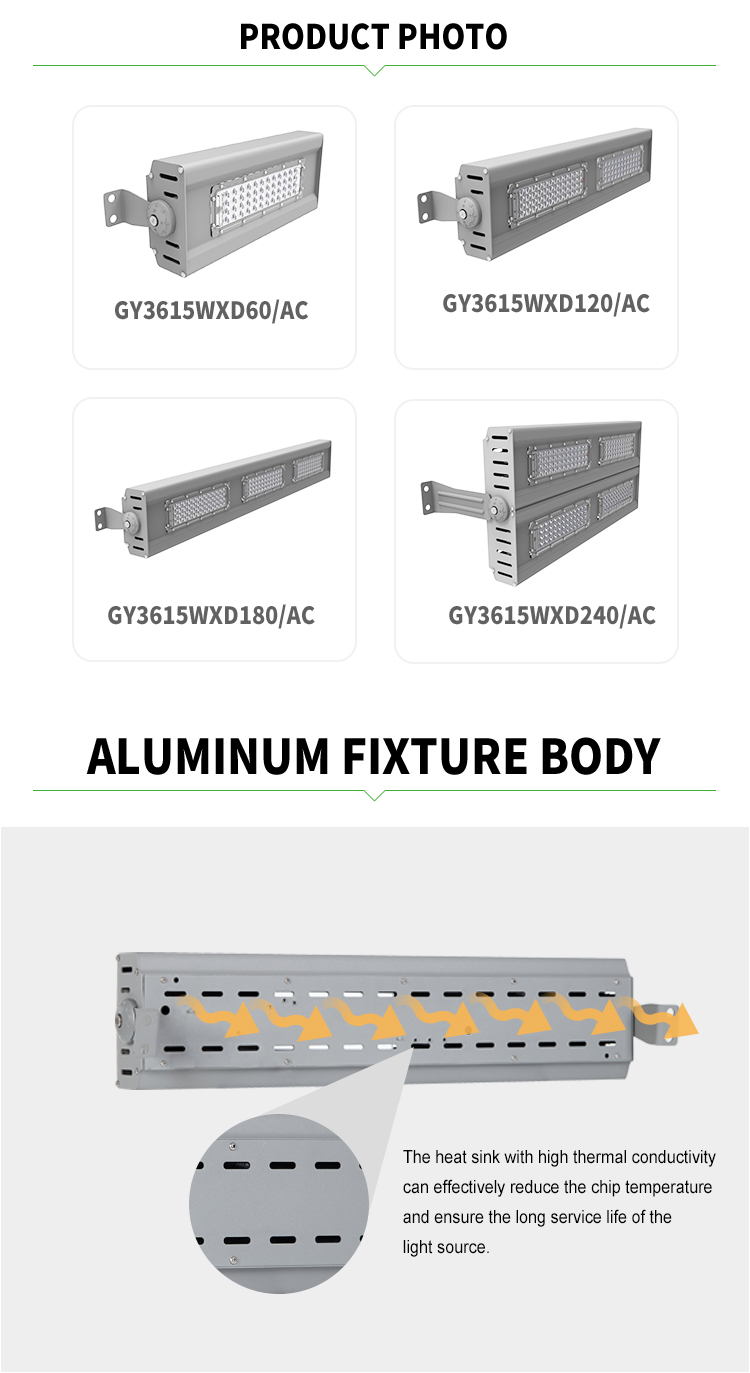

5) Heat dissipation design: The heat sink with high thermal
conductivity can effectively reduce the chip temperature and ensure
the long service life of the light source.
Application:
LED linear high bay light is widely used in industrial lightings,
such as warehouses, workshops, factories, supermarkets, waiting
rooms, railway stations, etc.
