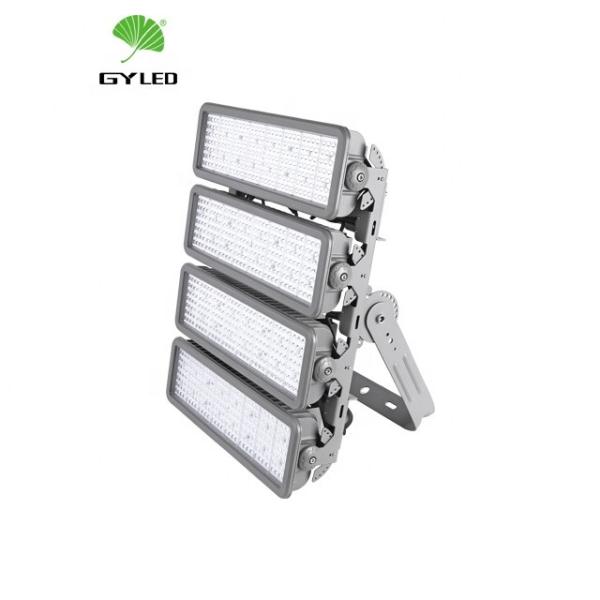

GY496TG High Mast LED Flood Lights
Lighting solutions service:
Lighting and circuitry design, DIALux Evo layout, LitePro DLX
layout.
Anti-glaring light is required more and more for applications where
people don't feel comfortable with the glaring light, especially in
the stadium. GY496TG series floodlight is the ideal solution for
visual protection.
Ambient working temperature can be -40~55℃,
Mounting Height:10-50m.
Application:
This light is designed for outdoor places, especially for the
stadium, sports field, hall, airport, dock, square, crane, etc.
The adjustable brackets, as well as different beam angles, can meet
different lighting requirements.
Inventronics LED Driver
• Guarantee a Long Operation Life
• 6KV Surge Protection
• IP66 Waterproof
Lumiled LEDs
• > 120lm/W
• 125,000 hours life
• > Ra70
• High-Temperature Tolerance
• Better Light Maintenance
• Better Color Consistency
• Better Outdoor Stability
Advanced Modular Aluminum Heat Sink
• High Thickness Modular Aluminum for Better Heat Dissipation
• Modular Design with Air Flow to Reduce Temperature
• Wide Power Range
PC Optical Lenses
• PC Material with High UV and Impact Resistance
• Multi-Beam Angle Options: 13°/30°/60°/90°/120°/asymmetric
• High Transparency and High Efficiency
Description:
□ High Luminous Efficiency: up to 130lm/w;
□ Multiple options of beam angle to meet different application
requirement:
13°,30°,60°,90°,120°, asymmetric lens;
□ Light directions can be adjusted according to application
requirement;
□ Anti-glare;
□ To be compatible with Light control system;
□ Low weight for easy mounting and maintenance, each 200w light
module only 6.3kgs, up to 28.2kgs(800w) ;
□ Mounting Height: 10~50m.
Product Data Sheet
