P66 reflectors economic waterproof 50w 100w 200w high mast flood
light square area lighting

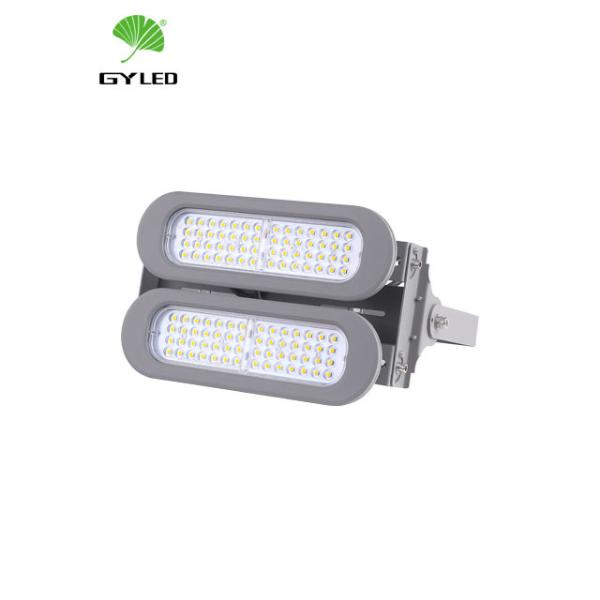

GY296TG High Mast Floodlight
Optical design, Anti-glare treatment
High efficiency and energy saving
5 years warranty
GYLED LED Lights Warranty:
We do the warranty not from guarantee words or paper, but from our
quality confidence and responsibility to our customers
-----(1) If the driver failed, we'll send a new driver.
-----(2) If the LED failed, we'll send a new LED.
-----(3) Unclear reason, we'll send full new set.
Product Description:
1. High Luminous Efficiency: up to 120lm/w.
2. Multiple options of beam angle to meet different application
requirement: 30°, 60°, 90°, 120°.
3. Light directions can be adjusted according to application
requirements.
4. IP66.
5. Glass: IK06, PC lens: IK08.
6. Long lifespan: L80＞36,000 Hrs.
7. Excellent Heat Extraction: each module works separately and
housing for LEDs and power supply are separate.
8. Anti-glare.
9. To be compatible with the Light control system.
10. Low weight & small size for easy mounting and maintenance, each
45w light module only 2.7kgs, up to 5.7kgs(200w).
Top Quality LED Driver
• Inventronics driver
• Guarantee a Long Operation Life
• 6KV Surge Protection
• IP66 Waterproof
Top Standard LEDs
• SMD Lumiled 3030s
• > 120lm/W
• 125,000 hours life
• > Ra70
• High-Temperature Tolerance
• Better Light Maintenance
• Better Color Consistency
• Better Outdoor Stability
GY296TG Optical Parameter
| No. | Model No. | Beam Angle(°) | CRI | Color Temperature
(K) | Luminous Efficiency
(LM/W) | Lumen Output
(LM) |
| 1 | GY296TG45(1)/AC |
30°
60°
90°
120° | 70 | 3000/4000 | 115 | 5175 |
| 5000/5700/6500 | 120 | 5400 |
| 80 | 3000/4000 | 105 | 4725 |
| 5000/5700/6500 | 115 | 5175 |
| 2 | GY296TG90(2)/AC |
30°
60°
90°
120° | 70 | 3000/4000 | 115 | 10350 |
| 5000/5700/6500 | 120 | 10800 |
| 80 | 3000/4000 | 105 | 9450 |
| 5000/5700/6500 | 115 | 10350 |
| 3 | GY296TG135(3)/AC |
30°
60°
90°
120° | 70 | 3000/4000 | 115 | 15525 |
| 5000/5700/6500 | 120 | 16200 |
| 80 | 3000/4000 | 105 | 14175 |
| 5000/5700/6500 | 115 | 15525 |
| 4 | GY296TG180(4)/AC |
30°
60°
90°
120° | 70 | 3000/4000 | 115 | 20700 |
| 5000/5700/6500 | 120 | 21600 |
| 80 | 3000/4000 | 105 | 18900 |
| 5000/5700/6500 | 115 | 20700 |
GY296TG Advantages
| 1 | The most powerful and efficient flood light heat sink, can work up
to 50000 hours, save up to 80% more energy than traditional lamp
housing. |
| 2 | Massive fins for efficient cooling technology, rapidly transfer the
heat of the LED chips to the heatsink lamp body. |
| 3 | Protection rate: IP66 waterproof |
| 4 | Tempered glass panel protects the light source, the transparent
rate up to 93% |
| 5 | The whole entire led flood light housing coated by electrophoretic
treatment, excellent corrosion resistance. |
| 6 | Stainless steel screws and accessories. |
| 7 | The led flood light housing compatible with different kinds of LED
chips and brackets--Customized products are welcomed. |
