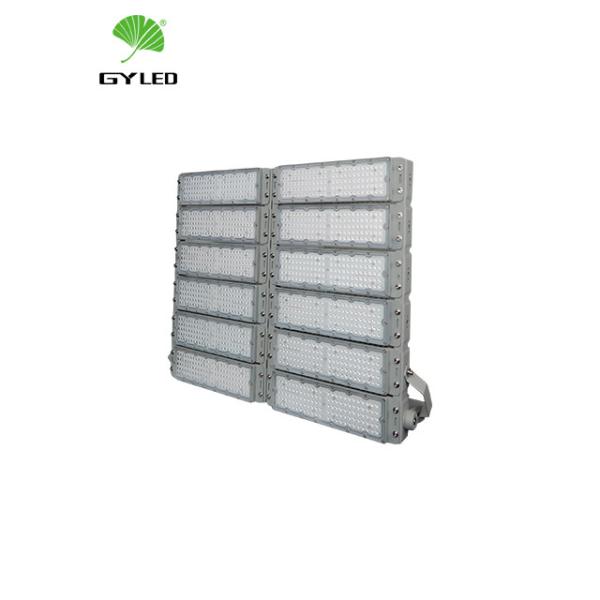

GYLED new design cheap price 1000 watt industrial floodlight garage
800 watt led reflector
Different beam angle, 30/60/90degree beam angle,
Brackets and singel module can be adjustable,
Ambient working temperature can be 55℃,
Mounting Height:10-50m, This light is designed for outdoor places,
especially for high mast, stadium, sports field, hall, airport,
square, etc. The adjustable brackets as well as different beam
angle can meet different lighting requirement.
High Thickness Rotating Bracket
• High Thickness Bracket
• Double security support to with standard high wind speed
• 300° Rotating to suit for multi application purposes
SPECIFICATIONS
LED Type: SMD LEDs
LED Efficacy: >120lm/W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI: ≥Ra75
LED Life: >125,000hrs
Beam Angle: 30°/60°/90°
PF: >0.95
Power Supply Efficiency: >92%
THD: ≤10%
Surge Protection: 6KV / 10KV
Control: 1-10V Dimming , Photocell, Dali Dimming , Intellectual
Control Optional
Material: Aluminum and PC Optical Lens
Color / Finish: Light Grey / Power Coating
Protection Grade: IP66
IK Grade: IK08
LED Chip
Bridgelux SMD5050, high luminous efficiency:200lm
Lifespan>50,000 hours
Top Quality LED Driver
• Guarantee a Long Operation Life
• 6KV Surge Protection
• IP67 Waterproof
PC Optical Lenses
• PC Material with High UV and Impact Resistance
• Multi Beam Angle Options
• High Transparency and High Efficiency
High Thickness Rotating Bracket
• High Thickness Bracket
• Double security support to with standard high wind speed
• 300° Rotating to suit for multi application purposes
IP66 Connector and Top Standard Cables
• Easy Connection IP66 Waterproof Connectors
• Top Standard TUV Approved Anti-aging Rubber Cable Especially for
Outdoor Usage
• Rubber Material for Higher Temperature Performance
• Top Standard Isolation Performance
Power Supply
Meanwell, Moso, Sosen driver are optinal, with 5 years warranty
Certificates
After several years endeavour and development, concentrating on
innovative spirit, GYLED established a professional management
team. The company is guided and operated according to requirements
from management systems of ISO9000,ISO14001 and OHSAS18001, and
with introducing ERP IMS (information Management System),management
decision becomes more scientific and efficient. We will also
continuously optimize management system, provide excellent platform
and ensure our every employee to create value for users.
Technical parameter |
Lamp Model Number | GY350TG |
Lamp Power | 300W | 400W | 500W | 600W | 800W | 1000W |
Module Qty | 4 | 5 | 6 | 8 | 10 | 12 |
Input Voltage | AC100～240V/277V (50~60Hz) |
Lighting Efficiency | ≥120LM/W |
| Beam Angle | 30°/60°/90° |
| Power Factor | ≥0.95 |
| CRI | Ra70/80 |
| Color Temperature(K) | 3000～6500K |
| IP Grade | IP65 |
Working Temperature(℃) | - 40 ～50 |
| Working Humility(RH) | 0 ～90% |
Lamp Size (mm) | 405*415*173 | 405*520*173 | 405*625*173 | 765*415*173 | 765*520*173 | 765*625*173 |
| Net Weight(KG) | 5.9 | 7.4 | 9.3 | 11.9 | 15 | 18.5 |
| Material | Die Casting Aluminum + PC Lens |
LED HIGH MAST LIGHT INSTALLATION METHODS:
1. Use hexagonal wrench to loosen the bracket dial, and adjust the
mounting bracket to the required installation angle, the projection
angle is adjustable, and then tighten the screws to fix the
bracket.
2. Fix the lamp at the corresponding installation position by
expansion bolts and adapter screws.
3. Connect the lamps according to the wiring identification.
ABOUT US
We, Shanxi Guangyu LED Lighting Co.,Ltd, established in 1988, is a
professional LED lighting products manufacturer in Shanxi province
of China. Our Sales office and R&D center both are in Shanghai.
GYLED is your provider of premier quality LED lighting products and
solutions. Our main products are LED Industrial Highbay lights, LED
Flood Area lights, LED Streetlights. With our long-term great
efforts, our products comply with CE, RoHS, ERP, GS, SAA, UL, cUL
and CCC certificates. We aim at focusing on the best products with
high quality and low cost.
QC
GYLED has very strict Quality Control System, from checking and
evaluation of incoming materials to the delivery of products, each
item will be checked and tested for several times.
Shipment
1. DHL(a big discount)
2. TNT/FedEx/UPS
3. DHL Airway express. About 3-5days you can get them by the door
of your home or office.
4. Seaway.15-25 days. It will definitely save your shipping cost
for the large order.
FAQ
Q1 What is your terms of payment?
T/T 30% as deposit in advance,and 70% balance before the shipment,
We'll show you the photos of the products and packages before you
pay the balance.
Q2 Can I get sample order first?
Yes.Welcome sample order to test quality.
Q3 Is your enterprise a factory or trading company?
We are the manufacturer specializing in R&D.
Q4 What kind of products are you specializing in?
We focus on LED street light,LED flood light,LED highbay light,LED
explosive proof light and so on.
Q5 All LED light have a warranty?
Yes.All kinds of products at least 3 years warranty.
Q6 What about the packing for bulk order?
If bulk order's quantity reach the custom MOQ,we can provide you
the custom service.
