Die Casting Aluminum 800W High Mast Flood Light 130LM/W

Product Categories

Shanxi Guangyu Led Lighting Co.,Ltd.

Contact Now

Die Casting Aluminum 800W High Mast Flood Light 130LM/W

Ask Lasest Price
Brand Name :	GYLED
Model Number :	GY496TG
Certification :	CE, ROHS
Price :	Negotiation
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	200000PCS/YEAR
Delivery Time :	7-10DAYS

Add to Cart

Product Details
Company Profile

Die Casting Aluminum 800W High Mast Flood Light 130LM/W

5 years warranty high lumen 400W 600W 800W high mast lighting towers flood lights

Sports and area floodlights---T-mast Series GY496TG

Technical Parameter

Model No.	GY496TG200(1)30°/220AC	GY496TG400(2)30°/220AC
	GY496TG200(1)60°/220AC	GY496TG400(2)60°/220AC
	GY496TG200(1)90°/220AC	GY496TG400(2)90°/220AC
	GY496TG200(1)120°/220AC	GY496TG400(2)120°/220AC
Lamp Power (W)	200W	400W
CRI (Ra)	70	70
Luminous Efficiency (Lm/W)	>130lm/W
Input Voltage (V)	176~305/ 90~305	176~305/ 90~305
Frequency (Hz)	47~63Hz	47~63Hz
Power Factor	＞0.95	＞0.95
Class	Class I	Class I
Surge Protection	Symmetrical mode: 6KV, common-mode: 10KV
Beam Angle(°)	13° /30° /60°/90°/120°/Asymmetric
Operation temperature	—40℃ ~40℃	—40℃ ~40℃
Humidity	less 90%	less 90%
Lamp size (mm)	228496148	326496222
Packing Size (mm)	300580190	410580260
Weight (kgs)	6.3	13.4
Material	Die-casting Aluminum Heat Sink + Steel Metal Bracket
IP rate	IP66

Model No.	GY496TG600(3)30°/220AC	GY496TG800(4)30°/220AC
	GY496TG600(3)60°/220AC	GY496TG800(4)60°/220AC
	GY496TG600(3)90°/220AC	GY496TG800(4)90°/220AC
	GY496TG600(3)120°/220AC	GY496TG800(4)120°/220AC
Lamp Power (W)	600W	800W
CRI (Ra)	70	70
Luminous Efficiency (Lm/W)	>130lm/W
Intput Voltage (V)	176~305/ 90~305	176~305/ 90~305
Frequency (Hz)	47~63Hz	47~63Hz
Power Factor	＞0.95	＞0.95
Class	Class I	Class I
Surge Protection	Symmetrical mode: 6KV, common-mode: 10KV
Beam Angle(°)	13° /30° /60°/90°/120°/Asymmetric
Operation temperature	—40℃ ~40℃	—40℃ ~40℃
Humidity	less 90%	less 90%
Lamp size (mm)	496496222	666496222
Packing Size (mm)	580580260	740580260
Weight (kgs)	21.7	28.2
Material	Die-casting Aluminum Heat Sink + Steel Metal Bracket
IP rate	IP66

Material:

□ Housing: high-pressure die cast aluminum, first given a zinc chromate substrate, then finished in RAL7036 light grey polyester powder coating for optimum protection against harsh environments.

□ Front Glass: Toughened glass, secured within an aluminum frame.

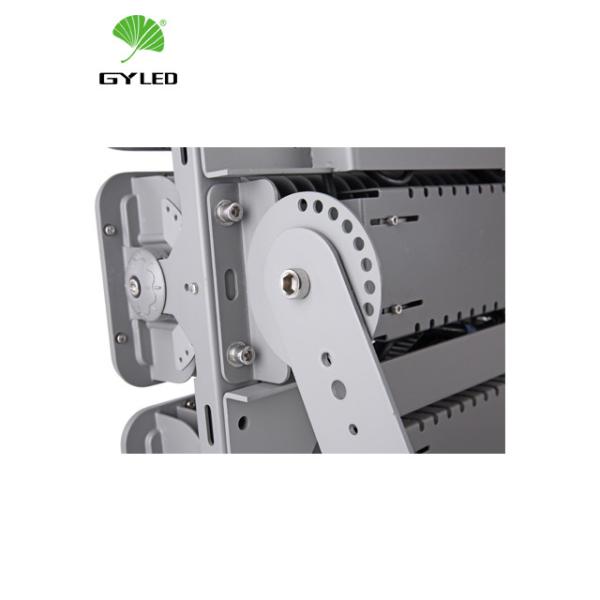

□ Bracket: Galvanized steel, with additional locking screws.

□ LENs: Plastic.

This light is designed for outdoor places, especially for the stadium, sports field, hall, airport, square, etc.

The adjustable brackets, as well as different beam angles, can meet different lighting requirements.

With IP66 Report.

With CE&RoHS Certificates.
