100000H Dali Driver Ip66 500 Watt Dimmable Flood Lights 1000 Watt

Ask Lasest Price
Brand Name :	GYLED
Model Number :	GY350TG
Certification :	CE,RoHS,EMC,LVD
Price :	Negotiation
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	200000PCS PER YEAR
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

100000H Dali Driver Ip66 500 Watt Dimmable Flood Lights 1000 Watt

Dimmable Dali driver ip66 500 watt 1000 watt outdoor commercial floodlight projector

Different beam angle, 30/60/90degree beam angle,

Brackets and the single module can be adjustable,

Ambient working temperature can be 55℃,
Mounting Height:10-50m,

This light is designed for outdoor places,
especially for high mast, stadium, sports field, hall, airport, square, etc. The adjustable brackets, as well as different beam angles, can meet different lighting requirements.

SPECIFICATIONS

LED Type: SMD LEDs

LED Efficacy: >120lm/W

CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K

CRI: ≥Ra75

LED Life: >125,000hrs

Beam Angle: 30°/60°/90°

PF: >0.95

Power Supply Efficiency: >92%

THD: ≤10%

Surge Protection: 6KV / 10KV

Control: 1-10V Dimming, Photocell, Dali Dimming, Intellectual Control Optional

Material: Aluminum and PC Optical Lens

Color / Finish: Light Grey / Power Coating

Protection Grade: IP66

IK Grade: IK08

Top Standard LEDs

• > 120lm/W

• 125,000 hours life

• > 75Ra

• High-Temperature Tolerance

• Better Light Maintenance

• Better Color Consistency

• Better Outdoor Stability

Heat sink

Aluminum material is with a fin-type design for better heat dissipation

Lens optional

Symmetrical PC lens: /30 ˚ /60 ˚ /90 ˚

±180˚Angle adjustable

Each module adjusted ±180° positive and negative.

The whole lamp can be adjusted 360°, and we mounted anti-skid teeth on the bracket.

IP66 Connector and Top Standard Cables

• Easy Connection IP66 Waterproof Connectors

• Top Standard TUV Approved Anti-aging Rubber Cable Especially for Outdoor Usage

• Rubber Material for Higher Temperature Performance

• Top Standard Isolation Performance

Top Quality LED Driver

• Guarantee a Long Operation Life

• 6KV Surge Protection

• IP66 Waterproof

Power wire

The power wire implement European standards, brown is L, blue is N, and yellow-green is ground.

Technical parameter
Lamp Model Number	GY350TG
Lamp Power	300W	400W	500W	600W	800W	1000W
Module Qty	4	5	6	8	10	12
Input Voltage	AC100～240V/277V (50~60Hz)
Lighting Efficiency	≥120LM/W
Beam Angle	30°/60°/90°
Power Factor	≥0.95
CRI	Ra70/80
Color Temperature(K)	3000～6500K
IP Grade	IP65
Working Temperature(℃)	- 40 ～50
Working Humility(RH)	0 ～90%

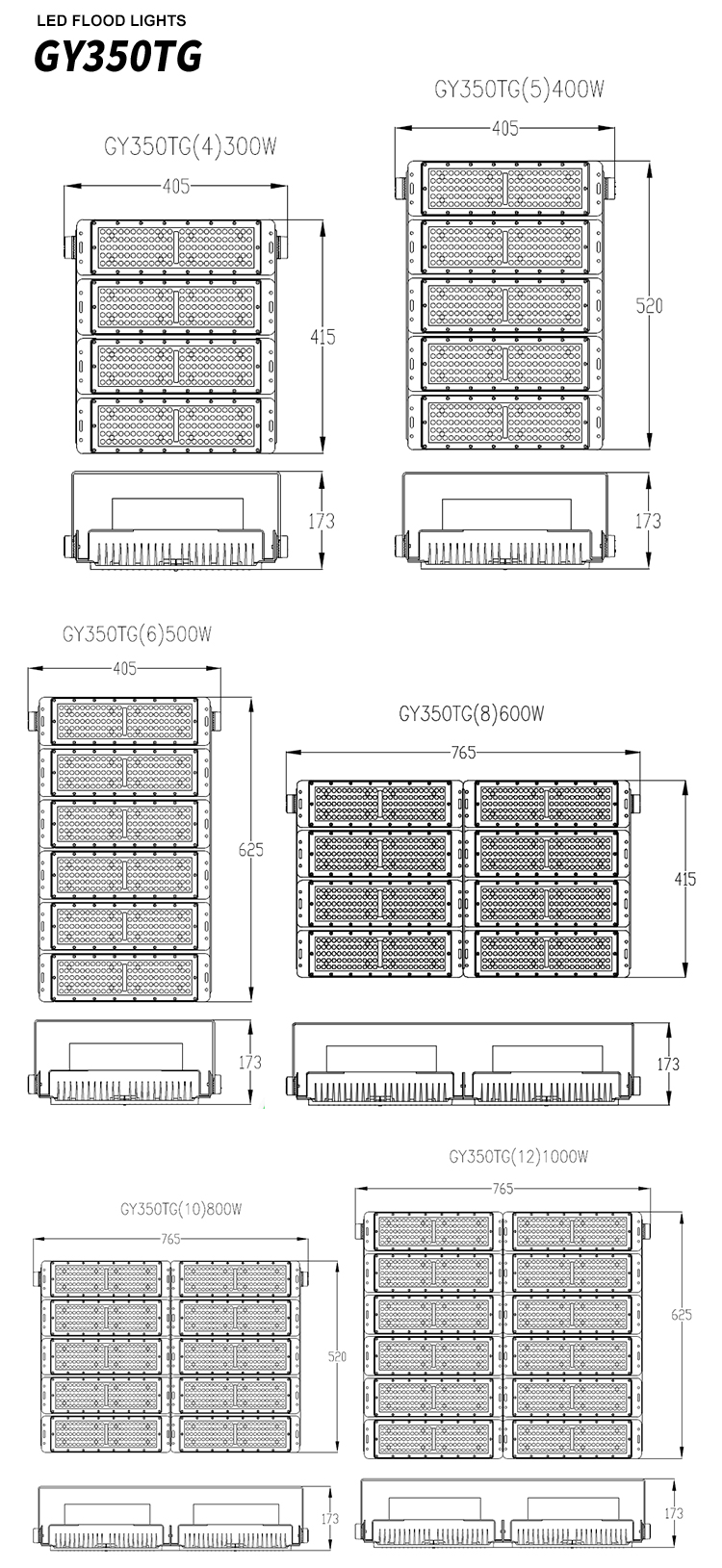

Lamp Size (mm)	405415173	405520173	405625173	765415173	765520173	765625173
Net Weight(KG)	5.9	7.4	9.3	11.9	15	18.5
Material	Die Casting Aluminum + PC Lens

DIMMABLE LED FLOODLIGHT INSTALLATION METHODS:

1.Use a hexagonal wrench to loosen the bracket dial, and adjust the mounting bracket to the required installation angle, the projection angle is adjustable, and then tighten the screws to fix the bracket.

2.Fix the lamp at the corresponding installation position by expansion bolts and adapter screws.

3.Connect the lamps according to the wiring identification.

ABOUT US

We, Shanxi Guangyu LED Lighting Co., Ltd, established in 1988, is a professional LED lighting products manufacturer in Shanxi province of China. Our Sales office and R&D center both are in Shanghai. GYLED is your provider of premier quality LED lighting products and solutions. Our main products are LED Industrial Highbay lights, LED Flood Area lights, LED Streetlights. With our long-term great efforts, our products comply with CE, RoHS, ERP, GS, SAA, UL, cUL, and CCC certificates. We aim at focusing on the best products with high quality and low cost.

Application

Good to use in Airport/Stadium/Highways/Rail/Logistics/Golf course.

GYLED has a very strict Quality Control System, from checking and evaluation of incoming materials to the delivery of products, each item will be checked and tested several times.

Shipment

1. DHL(a big discount)
2. TNT/FedEx/UPS
3. DHL Airway express. About 3-5days you can get them by the door of your home or office.
4. Seaway.15-25 days. It will definitely save your shipping cost for the large order.
