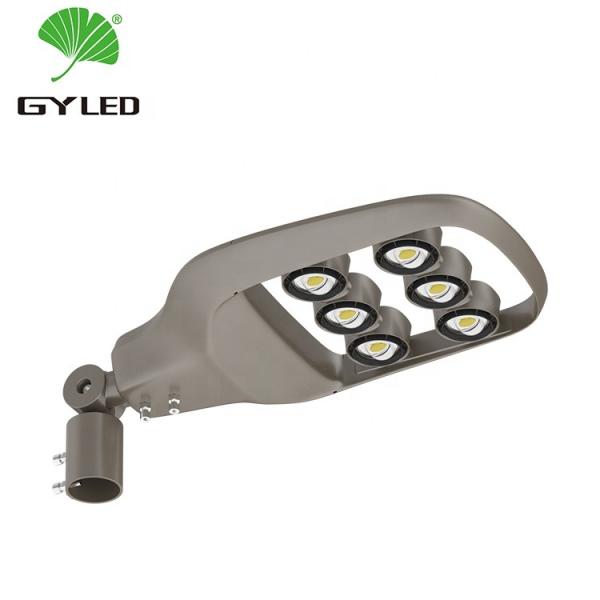

ik09 high lumen Outdoor IP66 Waterproof Led Parking Sidewalk Light 120w Road Lamp

Ask Lasest Price
Brand Name :	GYLED
Model Number :	GY-CELL-LD
Certification :	CE,RoHS
Price :	Negotiation
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	200000PCS/YEAR
Delivery Time :	7-10DAYS

Add to Cart

Product Details
Company Profile

ik09 high lumen Outdoor IP66 Waterproof Led Parking Sidewalk Light 120w Road Lamp

ik09 high lumen Outdoor IP66 Waterproof Led Parking Sidewalk Light
120w Road Lamp
Easy Installation, Low Maintenance,
High efficiency and energy saving
Using LED lighting, with no diffusive effect, with high luminous
efficiency, coupled with unique optical design, can beirradiated to
a wider area, and improve the light efficiency.
Adapts to various working environments,avoids accidental damage
caused by voltage instability,and does not cause safety hazards.
Superior aluminium die casting housing with larger area heat dissipation to
achieve excellent dissipation performance. Elegant and modern design with electrostatic spray surface
treatment, tool less, top open, easy for maintenance.
Model No.GY-CELL-5528LD50GY-CELL-5528LD100
Number of Modules24
Module TypeCOB LED CHIPS
Rated Power (W)50W100W
Input Voltage(V)AC100-240/277V/50-60Hz
Power Factor≥0.95
Nomial Lumen Output (Lm)≥6500Lm≥13000Lm
Luminous Efficiency (lm/w)≥130Lm/W
Color Temperature(CCT)3000K～5700K
CRI (Ra)Ra70
Pole Connector Size (mm)Ø48～60mm
IP RatingIP66
IK RatingIK08
Working Temperture (℃)-40～+50℃
Surface FinishAnti-corrosion powder coating
Lamp Size552*282*105mm
Net Weight4.1Kg5.4Kg
Packing Size605*340*160mm
Packing Quantity1 unit
Optional Spare PartsPhotocells, Surge Protection Device, Pole Adapter

Model No.GY-CELL-6741LD150GY-CELL-6741LD200/220
Number of Modules69
Module TypeCOB LED CHIPS
Rated Power (W)150Watt200/220Watt
Input Voltage(V)AC100-240/277V/50-60Hz
Power Factor≥0.95
Nomial Lumen Output (Lm)≥19500Lm≥28600Lm
Luminous Efficiency (lm/w)≥130Lm/W
Color Temperture (CCT)3000K～5700K
CRI (Ra)Ra70
Pole Connector Size (mm)Ø48～60mm
IP RatingIP66
IK RatingIK08
Working Temperture (℃)-40～+50℃
Surface FinishAnti-corrosion powder coating
Lamp Size (mm)675*418*111mm
Net Weight (Kg)8.4Kg10.4Kg
Packing Size730*475*165mm
Packing Quantity1 unit
Optional Spare PartsPhotocells, Surge Protection Device, Pole Adapter
