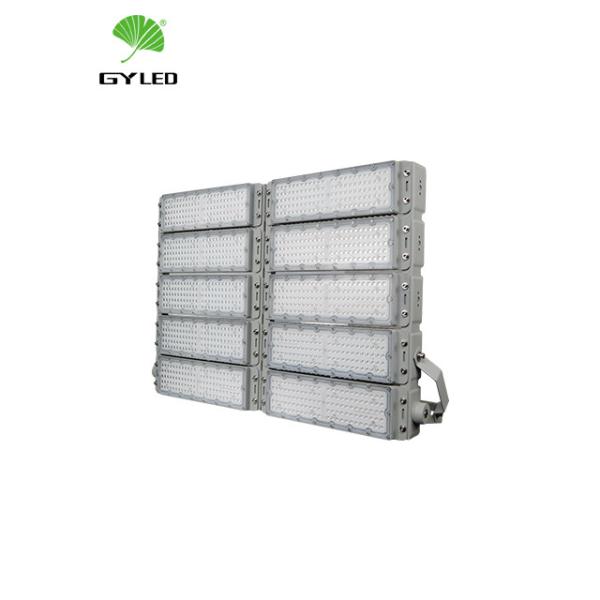

High Mast 600watt Led Stadium Flood Lights

Different beam angle, 30/60/90degree beam angle,
Brackets and singel module can be adjustable,
Ambient working temperature can be 55℃,
Mounting Height:10-50m, This light is designed for outdoor places,
especially for high mast, stadium, sports field, hall, airport,
square, etc. The adjustable brackets as well as different beam
angle can meet different lighting requirement.
Product Description:
Ultra-high power: the maximum power can reach 1000W.

High efficiency and energy saving: the whole lighting
efficiency>110lm/w.

Structural design: adopts integrated die-casting process, large
heat dissipation area and good thermal conductivity.

Adjusting bracket: adjustable 180° lighting installation.

Optical design: Provide a variety of light distribution schemes to
meet the lighting needs in different environments.

Heat dissipation design: Each module is independent of each other,
which can effectively prevent excessive heat concentration; the
separate design of the driver and the light source cavity
effectively reduces the temperature of the LED and the driver.

Easy to maintain: The drive is external and can be disassembled for
easy maintenance and replacement.

Green and environmental protection: no harmful elements such as
mercury and lead.

Technical parameter
Lamp Model Number	GY350TG
Lamp Power	300W	400W	500W	600W	800W	1000W
Module Qty	4	5	6	8	10	12
Input Voltage	AC100～240V/277V (50~60Hz)
Lighting Efficiency	≥120LM/W
Beam Angle	30°/60°/90°
Power Factor	≥0.95
CRI	Ra70/80
Color Temperature(K)	3000～6500K
IP Grade	IP65
Working Temperature(℃)	- 40 ～50
Working Humility(RH)	0 ～90%
Lamp Size (mm)	405415173	405520173	405625173	765415173	765520173	765625173
Net Weight(KG)	5.9	7.4	9.3	11.9	15	18.5
Material	Die Casting Aluminum + PC Lens

INSTALLATION:

1.Use hexagonal wrench to loosen the bracket dial, and adjust the mounting bracket to the required installation angle, the projection angle is adjustable, and then tighten the screws to fix the bracket.

2.Fix the lamp at the corresponding installation position by expansion bolts and adapter screws.

3.Connect the lamps according to the wiring identification.
