CE certificate sports arena outdoor led floodlights 80w 120w 140w
200w basketball court lighting

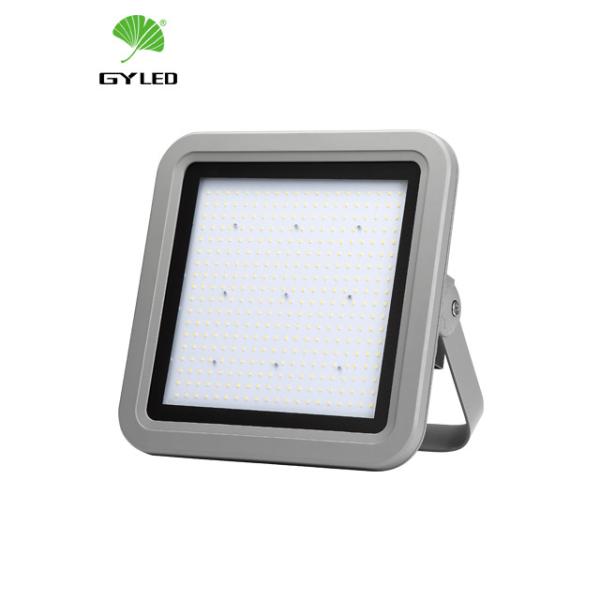

GY300/380TFG LED Outdoor Floodlights
Optical Design, Anti-glare treatment.
High efficiency and energy saving
5 years warranty
Product Features:
High Luminous Efficiency: up to 130lm/w;
□ Multiple options of beam angle to meet different application
requirement:
30°, 60°, 80°, 110°;
□ External power supply(IP67), dimming function, and light control
system can be
added;
□ Low weight for easy mounting and maintenance,
120watt only 5.3kgs,200watt only 7.5kgs;
□ Adjustable U type bracket is easily for mounting.
GYLED LED Lights Warranty:
We do the warranty not from guarantee words or paper, but from our
quality confidence and responsibility to our customers
-----(1) If the driver failed, we'll send a new driver.
-----(2) If the LED failed, we'll send a new LED.
-----(3) Unclear reason, we'll send full new set.
Materials:
□ Housing: High-pressure die cast aluminum, first given a zinc
chromate substrate, then finished in RAL7035 light grey polyester
powder coating for optimum protection against harsh environments
□ Front Glass(if any): Toughened glass, secured within an aluminum
frame.
□ Bracket: Galvanized steel, with additional locking screws.
□ LENs(for some beam angles): Plastic.
□ LEDs: Samsung/Osram LED chips with LM80 in TM21 test report.
□ Driver: MOSO brand LED Driver with CE and TUV approval
certificates.
GY380TFG Data Sheet
Model No. | GY380TG140(144)/AC | GY380TG200(196)/AC | GY380FG140(360)/AC | GY380FG200(480)/AC |
Lamp Power(w) | 140 | 200 | 140 | 200 |
Color Temperature(K) | 3000K-6500K |
Lumen Output(lm) | 16800-18200 | 24000-26000 | 16800-18200 | 24000-26000 |
Luminous Efficiency(lm/w) | 120-130 |
CRI(Ra) | 70 |
Output Voltage(V) | 100-240 |
Frequency(Hz) | 50/60 |
Power Factor | ＞0.95 |
Power Efficiency | 88%-89% | 88%-90% | 88%-89% | 89%-91% |
Class | I |
Surge Protection | 10KV |
L80@55° | 96.68% | 97.14% |
Beam Angle(°) | 30/60 | 110 |
Operation Temperature(℃) | -40℃-40℃ |
Humidity | 0-90% |
Lamp Size(mm) | 380*380*261 |
Packing Size(mm) | 430*430*400 |
Weight(kg) | 7.5 |
Material | Die Casting Aluminium Heat Sink+Sheet Metal Bracket+PC | Die Casting Aluminium Heat Sink+Sheet Metal Bracket+Tempered Glass |
IP | IP65 |
IK | IK08 |
Warranty Period(years) | 5years |
GY300TFG Data Sheet
Model No. | GY300TG80(80)/AC | GY300TG120(288)/AC | GY300FG80(80)/AC | GY300FG120(288)/AC |
Lamp power | 80 | 120 | 80 | 120 |
Color Temperature(K) | 3000K-6500K |
lumen Output(lm) | 9600-10400 | 14400-15600 | 9600-10400 | 14400-15600 |
Luminous Efficiency(lm/w) | 120-130 |
CRI(Ra) | 70 |
Output Voltage(V) | 100-240 |
Frequency(Hz) | 50/60 |
Power Factor | ＞0.95 |
Power efficiency | 90%-92% |
Class | I |
Surge Protection | 10KV |
L80@55° | 96.68% | 97.14% |
Beam Angle(°) | 30/60 | 110 |
Operation Temperature(℃) | -40℃-40℃ |
Humidity | 0-90% |
Lamp Size(mm) | 300*300*261 |
Packing Size(mm) | 700*350*340 |
Weight(kg) | 5.3 |
Material | Die Casting Aluminium Heat Sink+Sheet Metal Bracket+PC | Die Casting Aluminium Heat Sink+Sheet Metal Bracket+Tempered Glass |
IP | IP65 |
IK | IK08 |
Warranty Period(years) | 5years |
You can use our GY300/380FG LED flood light to replace your
incandescent or fluorescent fixture and save up to 80% of your
energy bill.
Once you install this light there will be free maintenance and a
50000hrs lifespan.
Certificates
After several years of endeavor and development, concentrating on
the innovative spirit, GYLED established a professional management
team. The company is guided and operated according to requirements
from management systems of ISO9000, ISO14001 and OHSAS18001, and
with introducing ERP IMS (Information Management System),
management decision becomes more scientific and efficient. We will
also continuously optimize the management system, provide an
excellent platform, and ensure our every employee to create value
for users.
Professional Packaging
• Foam Protection to Withstand Harsh Transportation and Impact
• Carton and Pallet with Foam and Cling Wrap to Withstand Impact,
High Humidity in Containers, and Rainy Weather
• To Guarantee an Intact Condition when Receiving the Goods
ABOUT US
We, Shanxi Guangyu LED Lighting Co., Ltd, established in 1988, is a
professional LED lighting products manufacturer in Shanxi province
of China. Our Sales office and R&D center both are in Shanghai.
GYLED is your provider of premier quality LED lighting products and
solutions. Our main products are LED Industrial Highbay lights, LED
Flood Area lights, LED Streetlights. With our long-term great
efforts, our products comply with CE, RoHS, ERP, GS, SAA, UL, cUL,
and CCC certificates. We aim at focusing on the best products with
high quality and low cost.
Shipment
1. DHL(a big discount).
2. TNT/FedEx/UPS.
3. Airway. About 3-5days you can get them by the door of your home
or office.
4. Seaway.15-25 days. It will definitely save your shipping cost
for the large order.
Q1 What is your terms of payment?
T/T 30% as deposit in advance, and 70% balance before the shipment,
We'll show you the photos of the products and packages before you
pay the balance.
Q2 Can I get a sample order first?
Yes.Welcome sample order to test quality.
Q3 Is your enterprise a factory or trading company?
We are a manufacturer specializing in LED lighting R&D.
Q4 What kind of products are you specializing in?
We focus on the LED street light, LED flood light, LED high bay
light, LED explosion-proof light and so on.
Q5 All LED lights have a warranty?
Yes.All kinds of products at least 3 years warranty.
Q6 What about the packing for bulk orders?
If the bulk order's quantity reaches the custom MOQ, we can provide
you the customer service.
