LED street light or road lamp is an integrated light-emitting diode
(LED) light fixture that is used for street lighting, These are
considered integrated lights, and the led modules and the fixture
are not separate parts. In manufacturing, the LED chips are sealed
on a panel and then assembled to the LED panel with a heat sink to
become an integrated lighting fixture.
Overview
Super High-Performance Price Ratio
Higher efficacy LED by Lumileds, Bridgelux, or San’an chip. China's
famous driver brands SOSEN, INVENTRONICS, and ZHIHE. More
convenient for installation and maintenance.
Multiple Configurations Optional
10KV SPD is optional. the Glass cover is optional.
Photocell, timer dimming, DALI, 0-10V dimming is optional.
An intelligent control system with 7 PIN NEMA interface is
optional.
| GY3614LD | GY4719LD | GY5623LD | GY6729LD | GY7433LD |
| Power(W) | 20-30 | 30-60 | 80-100 | 120-150 | 180-280 |
| Lumen Output(lm) | 2400-3600 | 3600-7200 | 9600-12000 | 14400-18000 | 21600-33600 |
| Input Voltage(V) | 100-240/277VAC |
| Power Factor | 0.95 |
| Frequency(Hz) | 50-60 |
| Lighting Efficiency(LM/W) | 110-130 | 120-140 |
| Lamp Post Diameter(mm) | 40 | 60 |
| CRI | 70 |
| Color Temperature(K) | 2700-6500 |
| Certificates | CE-LVD IK09, IP67 | NO |
| Material | Die casting aluminum+PC lens |
| Beam Angle | II-M | I-S, II-M, III-M, V | I-S, II-M, III-M, V | I-S, II-M, III-M, V | I-S, II-M, III-M, V |
| Glass Grade | I | I | I | I | I |
| IP Grade | IP67 |
| IK Grade | IK09 |
| Optional Function | No | Glass outside or 10KV SPT or Light sensor(3P/7P)
or 40mm adapter |

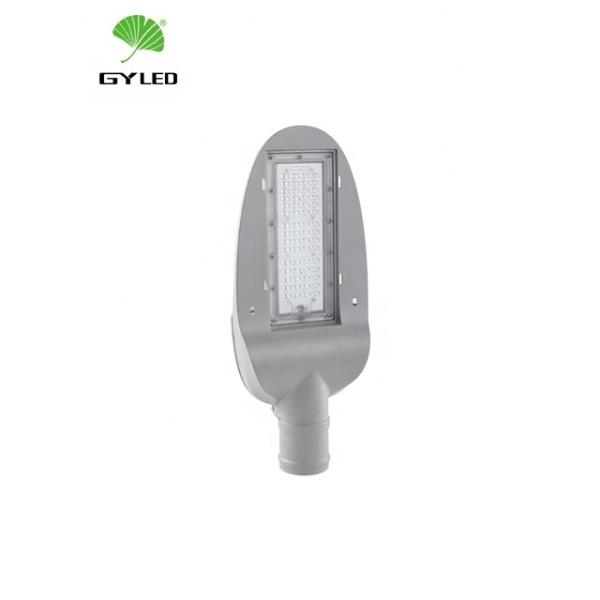

Product Features of GY3614LD LED Street Light
1.High pressure die-cast aluminum alloy housing from 30W to 280W.
2.Substantial friction-resistant powder spraying process surface
treatment.
3.Adopt multi-chip package 5050 LEDs. Stable performance, flip chip
technology, single unit’s damage won't affect others' normal work.
4.Smooth back, self-cleaning design tempered glass cover.
5.Optical lens design. Type II-M, III-M, IV-S optional. Uniform
lighting distribution applies to different lighting projects.
6.Excellent operating temperature -40~50°C
7.-15~15° adjustable bracket applicable different mounting arm.
8.With excellent housing design reaches IP66/IK08 rating.
9.Automatic cut-off design.10KV SPD.
10.Dimming and smart lighting system available upon request.
11.Long service life over 50,000 hours, 5 years warranty.
LED Source
Provide excellent lumen output, the best stability, and excellent
visual
perception. (Cree,Nichia,Osram,Bridgelux&etc.is optional)
High thermal conductivity aluminum plate
High transmission Len UV Resistance
PC material lens
PC material lens has high transmittance and low light attenuation.
Compared with a glass lens, it is not easy to damage.
Protection level IP65
Silica gel ring core sealing technology is used to achieve
waterproof and dust-proof, which is suitable for outdoor harsh
environment.
Fin Heat Dissipation Technology
Efficient aluminum fin heat dissipation technology, the surface
using powder baking process, fashion appearance, excellent
corrosion resistance.
Attention before installation:
•Please carefully read the operating instructions before using the
products.
•Please check if the power supply meets the requirements. The input
voltage of products is AC 85-300V
•Please cut off the power supply before installation.
Packaging & Delivery
•Packaging Details
•5 years warranty new module heatsink IP66 IK08 protect parking lot
lighting shoebox led street light
1 Put into a Carton box with standard export packing
2 Also according to your need.
