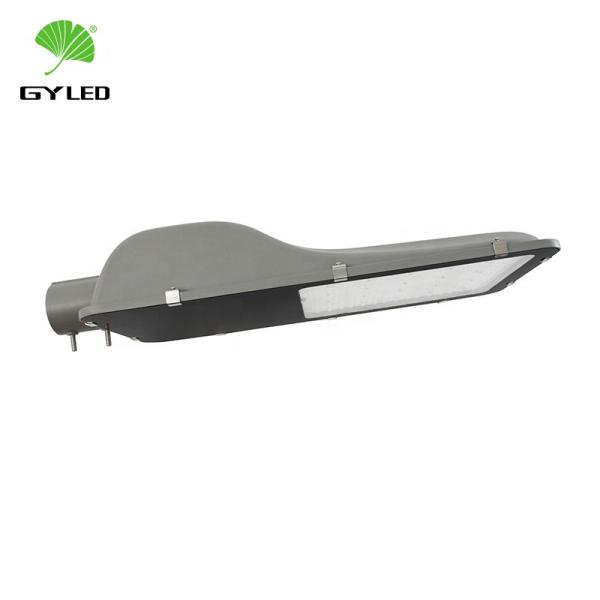

Factory Price 100 Watt Led Street Light Reliable 60W 80W 100W IP66
Roadway Led Lighting
Factory price 100 watts led street light reliable 60W 80W 100W IP66
roadway led lighting
Feature:
Lamp Power: 30W, 50W, 60W, 80W, 100W, 120W, 150W, 180W, 200W, 250W
Heat sinks for LED street lights are similar in design to heat sinks used to
cool other electronics such as computers. Heat sinks tend to have
as many grooves as possible to facilitate the flow of hot air away
from the LEDs. The area of heat exchange directly affects the
lifespan of the LED street light.
The lifespan of an LED street light is determined by its light
output compared to its original design specification. Once its
brightness decreases by 30 percent, an LED street light is
considered to be at the end of its life.
LED Driver
High-quality drivers provide excellent stability, a long lifetime,
and the best working performance.
Convenient Maintenance
Tool-Free Open and Maintenance
You can open the power supply cavity by rotating the butterfly
screw with your fingers. The design of anti-dropping screws is
safer.
Protection level IP66
Silica gel ring core sealing technology is used to achieve
waterproof and dust-proof, which is suitable for outdoor harsh
environments.
Product Brief
LEDs Light Source: Higher luminous efficiency, lower light
degradation, modularization;
Housing: Die-casting aluminum, a brand-new design, PC LENs with
higher light transmission;
Power Supply: Built-in type;
Streamlined Appearance Design: Unique, elegant;
IP Rating: IP66
IK Rate: IK08
GYLED LED Lights Warranty:
We do the warranty not from guarantee words or paper, but from our
quality confidence and responsibility to our customers.
-----(1) If the driver failed, we'll send a new driver.
-----(2) If the LED failed, we'll send a new LED.
-----(3) Unclear reason, we'll send full new set.
Application
Suitable for urban roads, sidewalks, squares, schools, parks,
courtyards, residential areas, factories, and other places that
require outdoor lighting.
Technical Parameter
Parameter | GY6530LD Series |
Power(W) | 30~60 | 80~120 | 150~180 | 200~250 |
Input voltage(V) | AC100～277V |
Power factor | ≥0.95 |
Frequency/Hz | 50/60 |
CCT(K) | 3000K~6500K |
Light efficiency | ≥130lm/W |
Light Distribution | TYPE II, III |
CRI | Ra≥70 |
IP /IK grade | IP66/IK08 |
CLASS | CLASS I |
Ambient temperature(℃) | -20~50℃ |
Pole diameter | 40~60mm |
Dimension(cm) | 44×37×39 | 54×32×48 | 61×32×55.5 | 68×46.5×32 |
Material | Die-casting Aluminum + PC lens + tempered glass |
Additional function | Photocell |
Warranty(year) | 5 years |
