Technical Parameter
| GY3614LD | GY4719LD | GY5623LD | GY6729LD | GY7433LD |
Power(W) | 20-30 | 30-60 | 80-100 | 120-150 | 180-280 |
Lumen Output(lm) | 2400-3600 | 3600-7200 | 9600-12000 | 14400-18000 | 21600-33600 |
Input Voltage(V) | 100-240/277VAC |
Power Factor | 0.95 |
Frequency(Hz) | 50-60 |
Lighting Efficiency(LM/W) | 110-130 | 120-140 |
Lamp Post Diameter(mm) | 40 | 60 |
CRI | 70 |
Color Temperature(K) | 2700-6500 |
Certificates | CE-LVD IK09, IP67 | NO |
Material | Die casting aluminum+PC lens |
Beam Angle | II-M | I-S, II-M, III-M, V |
Glass Grade | CLASS I |
IP Grade | IP67 |
IK Grade | IK09 |
Optional Function | No | Glass outside or 10KV SPT or Light sensor(3P/7P)
or 40mm adapter |
Product Description:
1, The lamp housing is made of aluminum alloy die casting, which
can effectively dissipate heat, waterproof, and dust. The surface
of the lamp has been treated with UV and corrosion resistance, and
the overall lamp has reached the IP67 standard.
2, High luminous efficiency, visual fidelity, no flicker, no harm
to eyes and skin, safe to use
3, There is no delay in starting, the normal brightness is reached
when power is on, and there is no need to wait, eliminating the
long-term starting process of traditional street lamps
4, Green and environmentally friendly, no pollution elements such
as lead and mercury; high stability of use, realizing green and
energy-saving lighting in a true sense.
5. With CE&ROHS, IP, IK certificates.
6. With 5 years warranty.
Advantages:

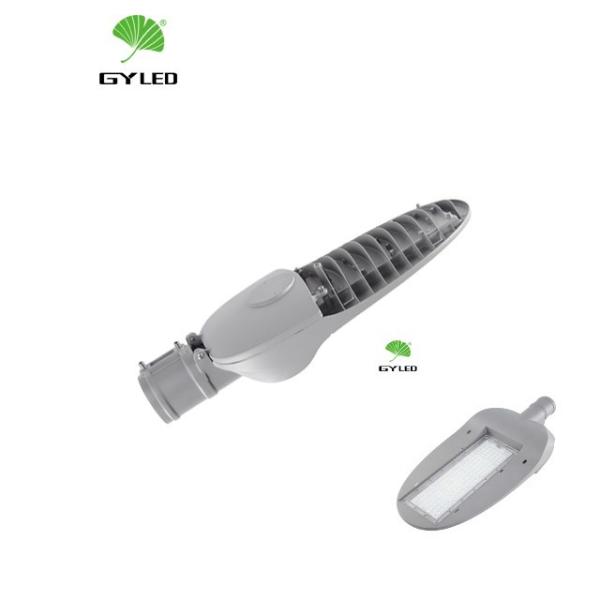

LED street light or road lamp is an integrated light-emitting diode
(LED) light fixture that is used for street lighting.
These are considered integrated lights and the led modules and the
fixture are not separate parts.
In manufacturing, the LED chips are sealed on a panel and then
assembled to the LED panel with a heat sink to become an integrated
lighting fixture.
